Ss Din Union Tee Complete

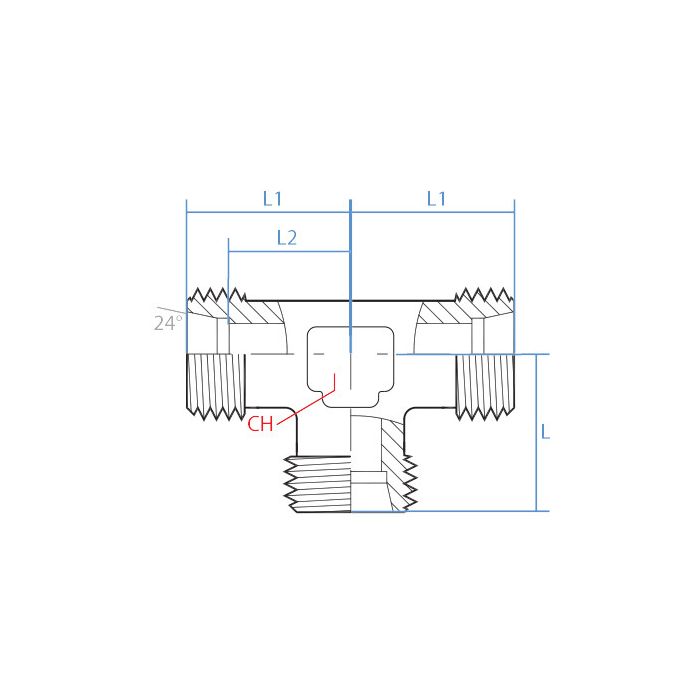

CH Width 37mm	L1 Length 38mm	L2 Length 30.5mm	Adaptall Material Stainless	Adaptall Shape Tee	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size L28	Side 1 Type Din Tube	Side 2 Callout M36 X 2.0	Side 2 Gender M	Side 2 Size L28	Side 2 Type Din Tube	Side 3 Callout M36 X 2.0	Side 3 Gender M	Side 3 Size L28	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5080L-28C	Product Weight 1.59 lbs

Product Questions & Answers 2

Product Questions & Answers

got three DIN tube runs to tie together, are all the ports on this tee the same size?

Question by: Shawn S on Mar 17, 2026, 5:03 PM

All three sides are DIN tube connections with male M36 x 2.0 threads, and each side is size L28, so it is a matching tee on every port.

Answer by: Customer Support on Mar 19, 2026, 10:52 AM

Is this tee fitting made of stainless steel all the way through, or just coated?

Question by: Todd J on Jan 24, 2026, 8:46 AM

Stainless steel is the material used throughout this Adaptall union tee, offering both durability and corrosion resistance for demanding hydraulic applications.

Answer by: Customer Support on Jan 26, 2026, 8:09 AM
