Ss Din Union Tee Complete SS5080L-18C

Specifications

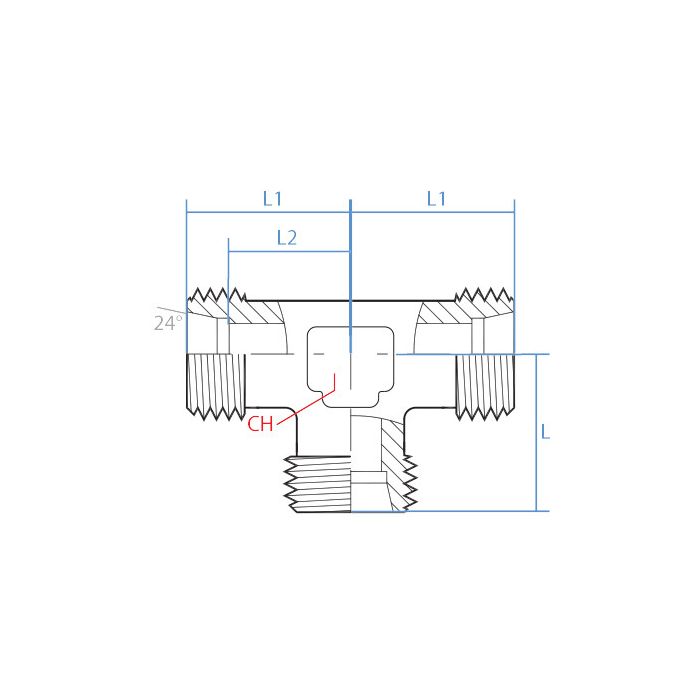

CH Width 24mm	L1 Length 31mm	L2 Length 23.5mm	Adaptall Material Stainless	Adaptall Shape Tee	Side 1 Callout M26 X 1.5	Side 1 Gender M	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout M26 X 1.5	Side 2 Gender M	Side 2 Size L18	Side 2 Type Din Tube	Side 3 Callout M26 X 1.5	Side 3 Gender M	Side 3 Size L18	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5080L-18C	Product Weight 0.97 lbs

Product Questions & Answers 3

Product Questions & Answers

All three ports on this thing are the same size and thread, right? Trying to figure out if I can run equal lines off all three sides without needing reducers or adapters in between.

Question by: Daryl M on Aug 31, 2025, 5:53 PM

All three connections are identical. Each port carries an M26 x 1.5 thread callout with an L18 DIN tube sizing, so you can run the same line spec off every side without stepping up or down. The 24mm Adaptall channel width is consistent across all three ports as well, which keeps your flow path uniform through the tee.

Answer by: Customer Support on Sep 2, 2025, 6:49 AM

got a tight spot on my manifold, how long is this tee end to end?

Question by: Hank W on Jul 22, 2025, 4:00 PM

For layout and clearance, the listed lengths are L1 31 mm and L2 23.5 mm, with a 24 mm Adaptall channel width on each side.

Answer by: Customer Support on Jul 24, 2025, 7:59 AM

Will this tee work with standard DIN fittings, or are there specific brands I need to stick with?

Question by: Lynn M on Mar 14, 2026, 5:50 PM

This union tee is designed for use with DIN standard systems, ensuring compatibility and leak-free performance. It features three DIN tube connections.

Answer by: Customer Support on Mar 16, 2026, 3:59 PM
