Ss Din Union Tee Complete

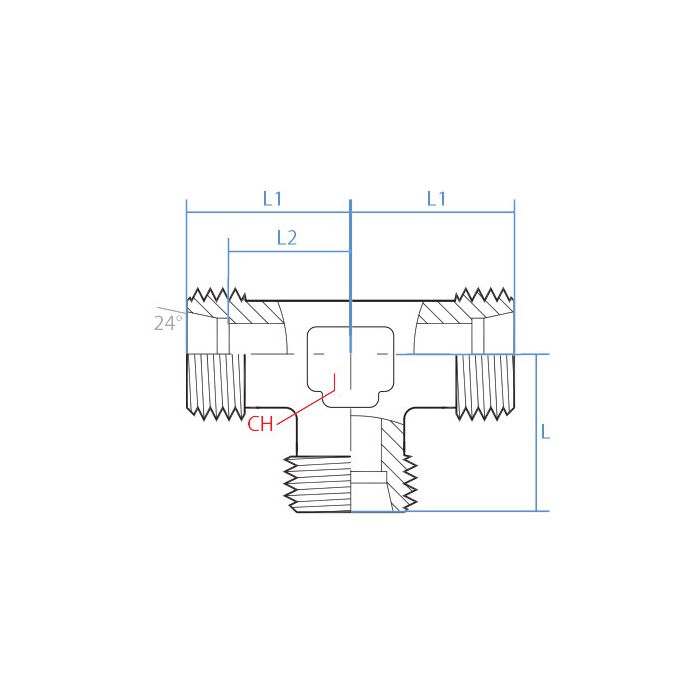

CH Width 14mm	L1 Length 22mm	L2 Length 15mm	Adaptall Material Stainless	Adaptall Shape Tee	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size L10	Side 2 Type Din Tube	Side 3 Callout M16 X 1.5	Side 3 Gender M	Side 3 Size L10	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5080L-10C	Product Weight 0.33 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to tie a third DIN tube line in, are all three ends on this tee the same thread?

Question by: Jimmy H on Feb 28, 2026, 2:55 PM

All three ports match. Each connection point is a male M16 x 1.5 thread and it is set up for DIN tube on all three sides.

Answer by: Customer Support on Mar 2, 2026, 8:30 AM

What size wrench do I need to tighten this tee fitting down good and snug?

Question by: Eddie H on May 10, 2025, 4:48 PM

This union tee requires a 14mm wrench, making installation straightforward.

Answer by: Customer Support on May 12, 2025, 6:48 AM

All three ports on this thing use the same thread size, or do they vary?

Question by: Melvin M on Aug 3, 2025, 3:03 PM

All three connection points are M16 x 1.5, and all three are sized for L10 DIN tube. So no mixing and matching required, every port is identical in thread spec and sizing.

Answer by: Customer Support on Aug 5, 2025, 9:42 AM
