Ss Din Union Tee Complete SS5080L-06C

Specifications

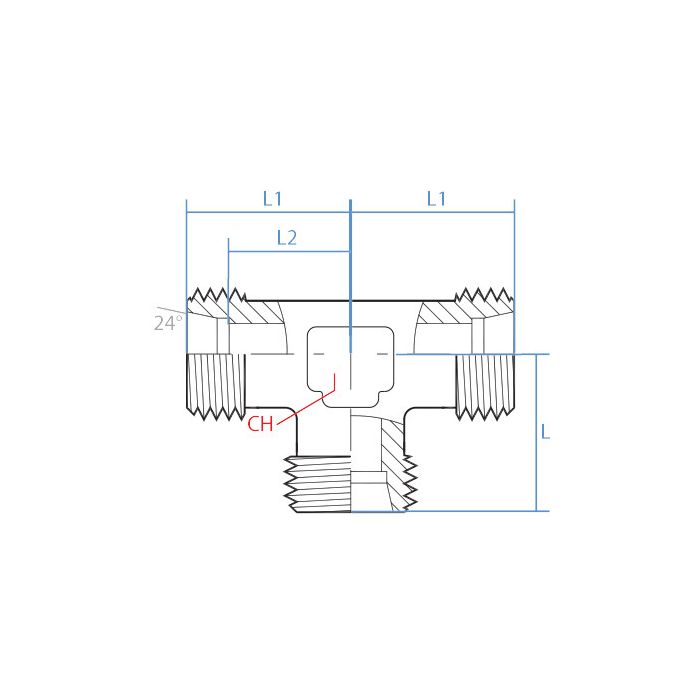

CH Width 12mm	L1 Length 19mm	L2 Length 12mm	Adaptall Material Stainless	Adaptall Shape Tee	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size L06	Side 2 Type Din Tube	Side 3 Callout M12 X 1.5	Side 3 Gender M	Side 3 Size L06	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5080L-06C	Product Weight 0.25 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to tee off a line but keep all three ends the same, is this one equal on every port?

Question by: Tony E on Sep 10, 2025, 8:55 AM

All three connections are the same on this tee. Each side is a DIN tube male thread M12 x 1.5, size L06, so it works well when you need a symmetrical branch with matching ends.

Answer by: Customer Support on Sep 11, 2025, 2:49 PM

All three ports on this thing are the same size and thread, right? Just want to make sure before I order a handful of em for a symmetrical branch setup we got running.

Question by: Stan M on Sep 17, 2025, 11:27 AM

all three ports are identical. Each one is M12 x 1.5 male DIN tube thread, L06 sizing across the board. So if you're building out a symmetrical branch circuit, there's no sorting or orienting required. All three connections go together the same way.

Answer by: Customer Support on Sep 18, 2025, 5:04 PM

Is this tee fitting made entirely of stainless steel?

Question by: Phil M on Aug 6, 2025, 1:27 PM

Yes, this union tee is constructed entirely from stainless steel, making it suitable for environments where corrosion resistance is important.

Answer by: Customer Support on Aug 7, 2025, 9:36 PM
