Ss 90* Din Union Complete

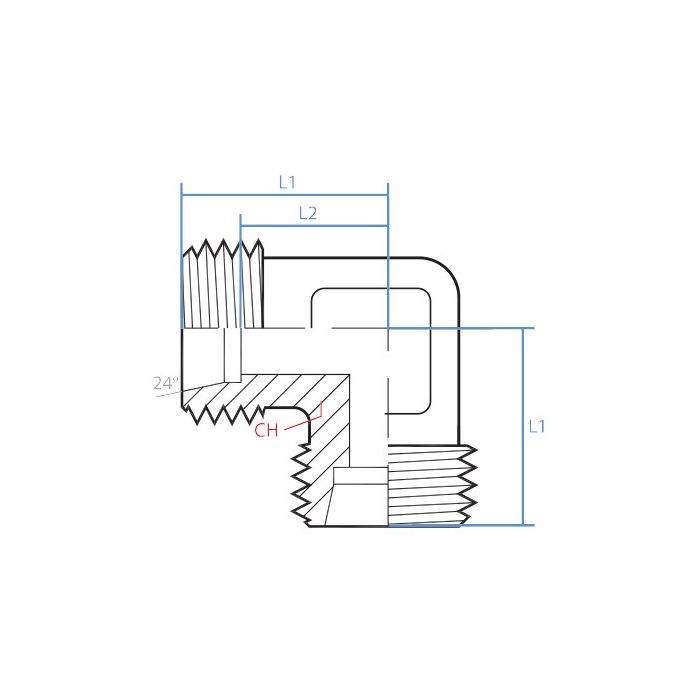

CH Width 24mm	L1 Length 31mm	L2 Length 23.5mm	Adaptall Material Stainless	Adaptall Shape 90° Elbow	Side 1 Callout M26 X 1.5	Side 1 Gender M	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout M26 X 1.5	Side 2 Gender M	Side 2 Size L18	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5055L-18C	Product Weight 0.69 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this fitting hold up if its exposed to hydraulic fluid all the time?

Question by: Harvey M on Jul 22, 2025, 12:08 PM

Stainless steel construction makes this 90° DIN union suitable for hydraulic applications where constant fluid contact or environmental conditions rule out standard carbon steel.

Answer by: Customer Support on Jul 24, 2025, 7:46 AM

trying to tie two L18 DIN tube ends together but need to turn the line 90 degrees, is this the right fitting?

Question by: Dwight M on Apr 14, 2025, 8:28 AM

For a right angle connection without changing sizes, this union matches two DIN tube ends that are both M26 x 1.5 male at the L18 size, so it joins like to like while making a 90° turn.

Answer by: Customer Support on Apr 15, 2025, 11:13 AM
