Ss Din X Male Npt Complete

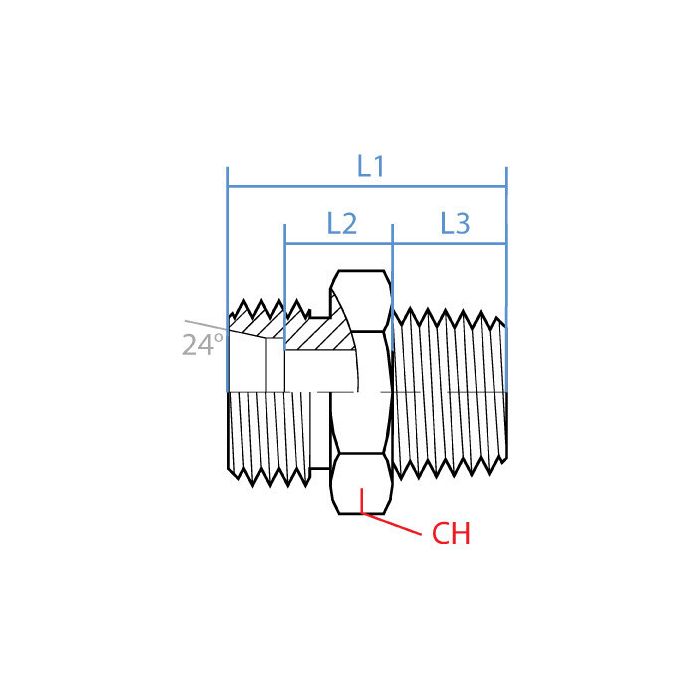

CH Width 22mm	L1 Length 42mm	L2 Length 14.5mm	L3 Length 20mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout M20 X 1.5	Side 1 Gender M	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout 1/2 - 14 NPTF	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5007S-12-08C	Product Weight 0.24 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this here fitting hold up alright in a salty environment, like near the coast?

Question by: Cheryl G on Feb 19, 2026, 3:35 PM

Stainless steel construction makes this fitting suitable for use in harsh or corrosive environments where standard carbon steel wouldn't hold up. It's designed for applications where corrosion resistance is a key requirement.

Answer by: Customer Support on Feb 21, 2026, 12:56 PM

What exactly is the thread setup on this fitting, one side metric, one side NPT?

Question by: Marvin H on May 10, 2025, 5:07 PM

Correct on both counts. The DIN side runs M20 x 1.5 male, which is a metric thread commonly found on European-spec hydraulic components. The opposite end is a 1/2"-14 NPTF male, which ties into standard NPT ports used all over North American equipment. So if you're bridging a metric tube end over to an NPT port, this is the fitting that makes that connection without adapters stacked on adapters.

Answer by: Customer Support on May 12, 2025, 2:01 PM
