Din X Male Npt Complete SS5007L-18-08C

Specifications

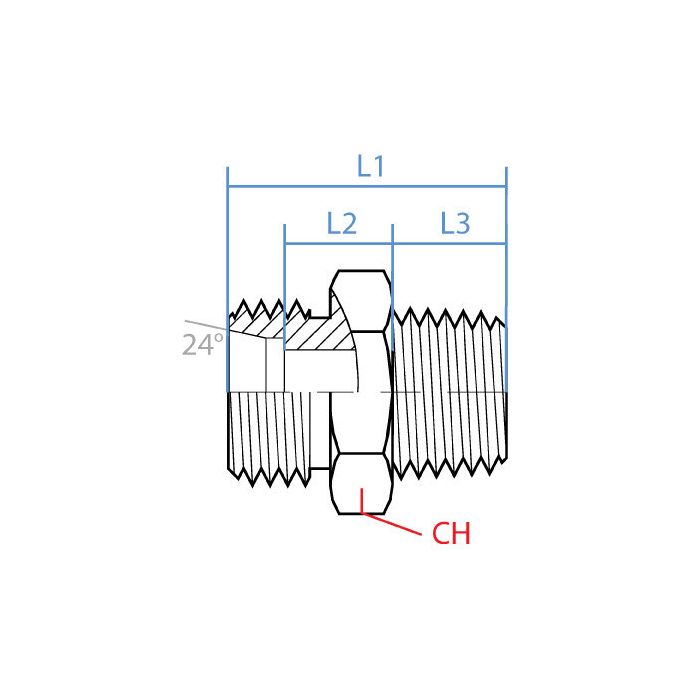

CH Width 27mm	L1 Length 39mm	L2 Length 11.5mm	L3 Length 20mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout M26 X 1.5	Side 1 Gender M	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout 1/2 - 14 NPTF	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5007L-18-08C	Product Weight 0.36 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting hold up if it's exposed to chemicals on the regular?

Question by: Randy R on Feb 8, 2026, 6:03 PM

Stainless steel makes this adapter well-suited for environments where there's exposure to chemicals and moisture, so it should hold up just fine.

Answer by: Customer Support on Feb 10, 2026, 6:59 AM

Got a DIN tube end I need to tie into a 1/2" NPT port on a pump housing. This fitting go straight through without any offset or angle?

Question by: Tommy C on Apr 12, 2025, 8:42 AM

Straight through, no offset. The fitting runs inline, so your DIN tube end and the NPT port will stay on the same axis. Overall length comes in at 39mm, which keeps the connection pretty compact if clearance is a concern in tight hydraulic connections runs.

Answer by: Customer Support on Apr 14, 2025, 6:33 AM

trying to hook a DIN tube end up to a 1/2 NPT port, is this the right adapter or am i off a size?

Question by: Keith G on Mar 29, 2026, 11:43 AM

For that setup, it matches a DIN tube end with an M26 x 1.5 male thread in the L18 series on one side, and a 1/2 inch male NPTF thread (1/2 to 14) on the other, in a straight inline adapter.

Answer by: Customer Support on Mar 30, 2026, 6:51 PM
