Din X Male Npt Complete

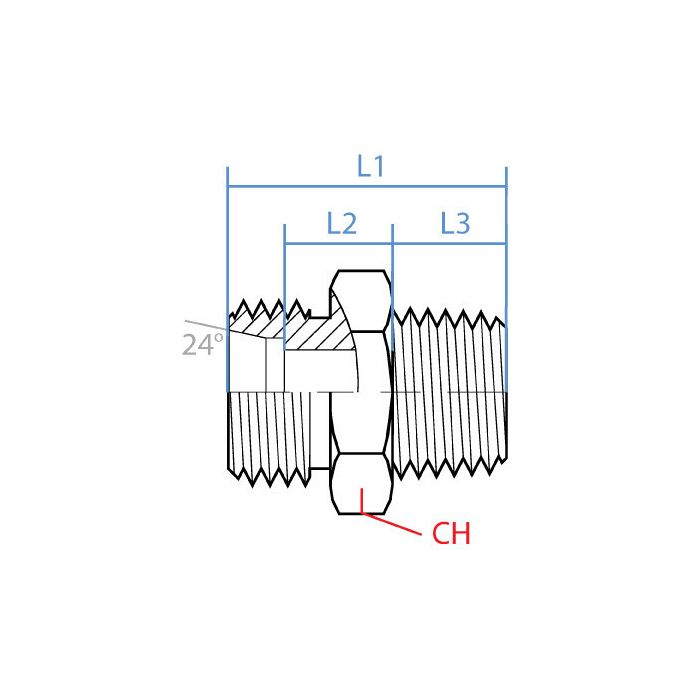

CH Width 17mm	L1 Length 30mm	L2 Length 8mm	L3 Length 15mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5007L-08-04C	Product Weight 0.12 lbs

Product Questions & Answers 2

Product Questions & Answers

got a DIN tube end that’s M14 x 1.5, size L08. is this the right straight adapter to go over to 1/4 npt?

Question by: Shawn M on Apr 30, 2025, 3:17 PM

For that combo, it matches up as a straight Adaptall fitting with a DIN tube connection of M14 x 1.5 in size L08 on one side, and a 1/4 inch male NPT end called out as 1/4 - 18 NPTF on the other.

Answer by: Customer Support on May 2, 2025, 1:20 PM

Will this fitting hold up if it's exposed to corrosive stuff on the regular?

Question by: Brenda A on Mar 26, 2026, 9:16 PM

Constructed from stainless steel, this fitting offers good durability and resistance to corrosion in demanding environments.

Answer by: Customer Support on Mar 28, 2026, 8:44 PM
