Ss Din Union Complete

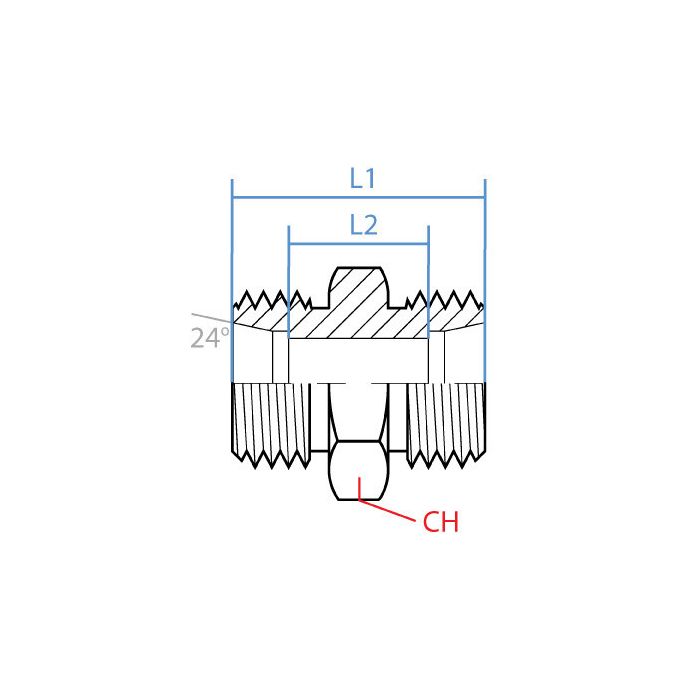

CH Width 27mm	L1 Length 31mm	L2 Length 16mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout M26 X 1.5	Side 1 Gender M	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout M26 X 1.5	Side 2 Gender M	Side 2 Size L18	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5000L-18C	Product Weight 0.49 lbs

Product Questions & Answers 1

Product Questions & Answers

Both ends are M26 x 1.5 with that L18 DIN tube interface, right? Just want to make sure before I order a couple of these for an inline splice on matching tube runs.

Question by: Joyce R on Jan 28, 2026, 6:26 PM

Correct on both counts. Each side carries the same M26 x 1.5 thread and L18 DIN tube interface, so the union is fully symmetric. That makes it a straightforward inline connector when you're joining two tube ends of the same size without any adapter in between.

Answer by: Customer Support on Jan 30, 2026, 6:31 AM
