Ss Din Union

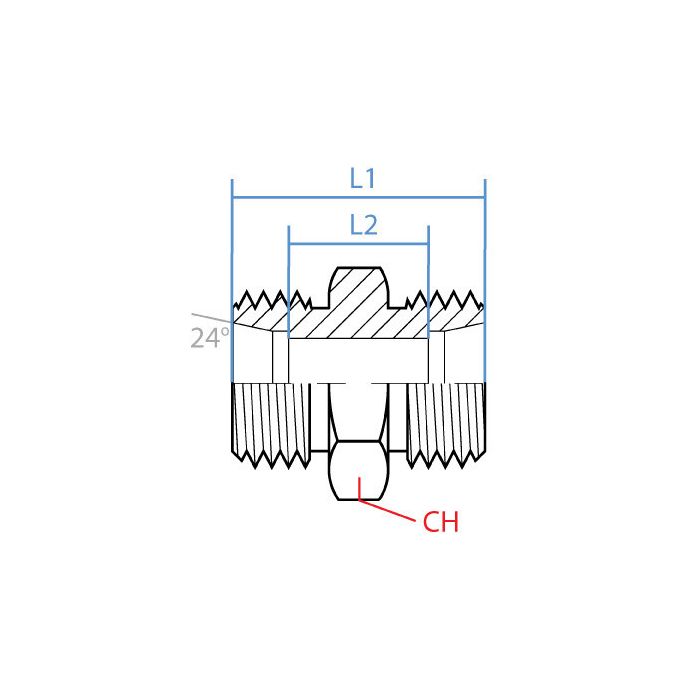

CH Width 27mm	L1 Length 31mm	L2 Length 16mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout M26 X 1.5	Side 1 Gender M	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout M26 X 1.5	Side 2 Gender M	Side 2 Size L18	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5000L-18	Product Weight 0.15 lbs

Product Questions & Answers 1

Product Questions & Answers

Both sides got M26 x 1.5 DIN tube connections on this thing, right? Just want to make sure I ain't gotta mess with any adapters before I put it in.

Question by: Freddie J on Mar 15, 2026, 6:59 AM

Correct on both counts. Each end carries an M26 x 1.5 male DIN tube connection, so if your system already runs that thread spec on both sides, this union drops straight in without any additional adapters in between.

Answer by: Customer Support on Mar 16, 2026, 12:03 PM
