Adaptall Ss316 90*Tube M.Bspp X F.Bspp SS9045-04-04

Specifications

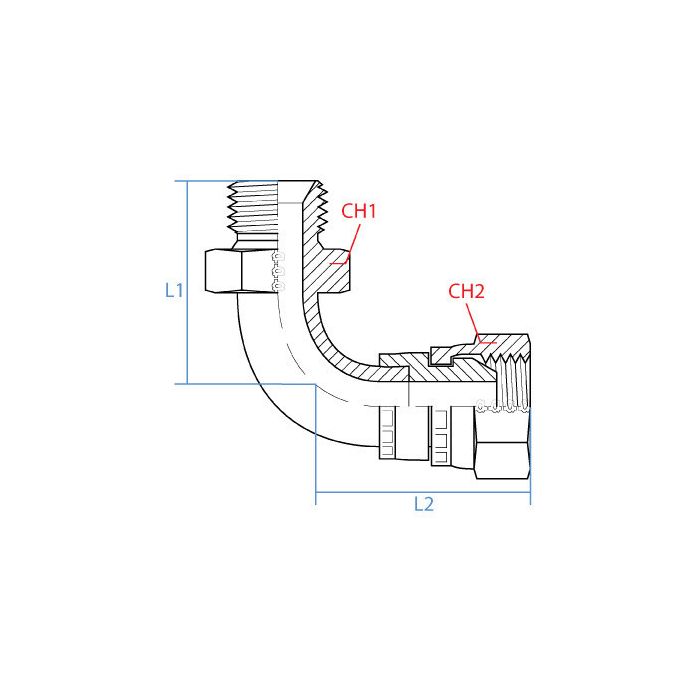

CH1 Width 19mm	CH2 Width 19mm	L1 Length 30mm	L2 Length 32mm	Adaptall Material Stainless	Adaptall Shape 90° Elbow	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9045-04-04	Product Weight 0.12 lbs

Product Questions & Answers 3

Product Questions & Answers

both ends are G 1/4-19 BSPP right? just want to make sure i'm not mixing up the male and female sides before i order

Question by: Johnny R on Dec 19, 2025, 1:59 PM

Correct on both counts. The male end and the female end both carry a G 1/4-19 thread form, so you're working with the same size and thread type across both connections. The male side comes in at 30mm in length with a 19mm wrench flat, and the female side is 32mm with the same 19mm wrench flat. As long as your mating fittings are BSPP G 1/4, you're good to go on both ends.

Answer by: Customer Support on Dec 21, 2025, 11:01 AM

Will this fitting work for connecting stainless steel tubing at a 90-degree angle?

Question by: Ralph R on Sep 17, 2025, 3:12 PM

Yes, this 90-degree elbow fitting is manufactured from 316 stainless steel and designed to connect male and female BSPP threads, making it suitable for directional changes in stainless steel hydraulic circuits.

Answer by: Customer Support on Sep 19, 2025, 9:04 AM

trying to turn a line 90 degrees in a tight spot, is this the elbow that goes male G 1/4 to female G 1/4?

Question by: Tammy G on Jul 13, 2025, 10:27 AM

For a right angle change in direction, it’s a 90° elbow with a male BSPP G 1/4 - 19 on one end and a female BSPP G 1/4 - 19 on the other, both in 1/4 inch size.

Answer by: Customer Support on Jul 15, 2025, 6:29 AM
