Adaptall Ss F. Din X M. Din Reducer SS5315L-18-15

Specifications

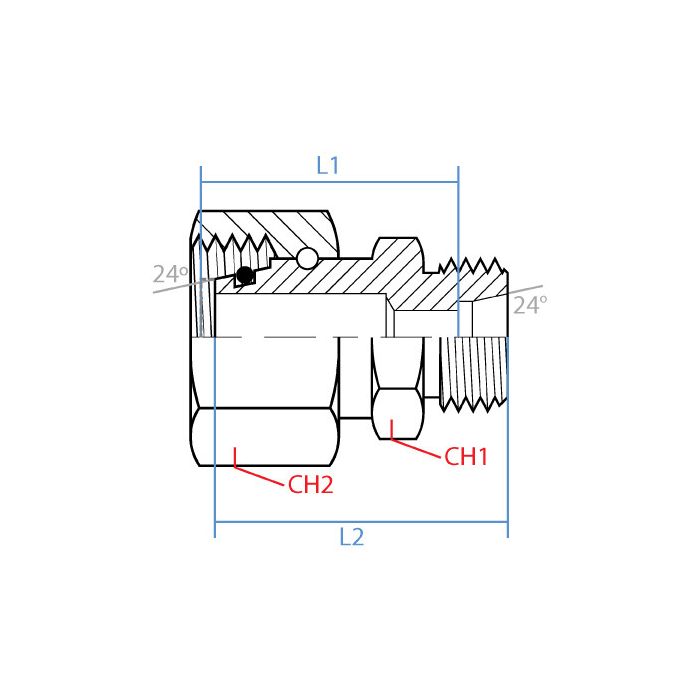

CH1 Width 24mm	CH2 Width 32mm	L1 Length 30mm	L2 Length 35.5mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout M26 X 1.5	Side 1 Gender F	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size L15	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5315L-18-15	Product Weight 0.30 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this reducer work alright in an oily environment, or do I need something special?

Question by: Shane P on Jun 20, 2025, 9:41 AM

Constructed from stainless steel, this reducer offers excellent corrosion resistance, making it suitable for demanding industrial applications where exposure to oil and other fluids is common.

Answer by: Customer Support on Jun 21, 2025, 2:04 PM

what's the thread size on the male end of this reducer? need to make sure it matches up with what I already got runnin on the line

Question by: Floyd P on Dec 18, 2025, 5:38 PM

The male end is M22 x 1.5, and the female end is M26 x 1.5. Both are DIN tube fittings, so as long as your existing connections follow that same DIN standard at those sizes, you should have a solid match. The reducer steps down from the larger female side to the smaller male side in a straight configuration.

Answer by: Customer Support on Dec 20, 2025, 6:26 AM
