Adaptall Ss F. Din X M. Din Reducer Complete SS5315L-15-12C

Specifications

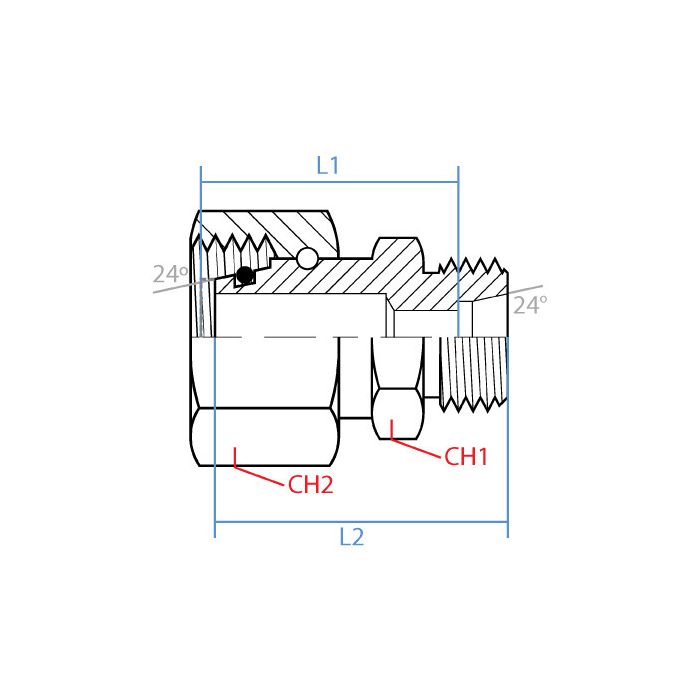

CH1 Width 22mm	CH2 Width 27mm	L1 Length 29.5mm	L2 Length 35.5mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout M22 X 1.5	Side 1 Gender F	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size L12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5315L-15-12C	Product Weight 0.28 lbs

Product Questions & Answers 3

Product Questions & Answers

What exactly is this fitting doing in a hydraulic line, is it just stepping down tube sizes between two DIN connections?

Question by: Hubert C on Dec 30, 2025, 3:35 PM

That's exactly what it's for. One end is a female DIN tube fitting at M22 x 1.5 with an L15 size, and the other end is a male DIN tube fitting at M18 x 1.5 with an L12 size. So wherever you've got a larger DIN connection feeding into a smaller one, this adapter bridges that gap in a straight run without needing extra fittings or fabrication.

Answer by: Customer Support on Jan 1, 2026, 6:41 AM

Hey, will this here reducer work alright with stainless steel hydraulic lines?

Question by: Donna P on Sep 26, 2025, 9:14 PM

Seeing as it's made from stainless steel, this reducer should be compatible with other stainless lines and hold up well in systems where corrosion might be a concern.

Answer by: Customer Support on Sep 28, 2025, 8:05 PM

got a hose end that’s M22 x 1.5 on a DIN L15, and the other side needs to be M18 x 1.5 L12. is this the right reducer?

Question by: Curt C on Feb 10, 2026, 9:54 PM

Straight reduction is exactly what this adapter is built for. One end is a female DIN tube fitting M22 x 1.5 in L15, and the other end is a male DIN tube fitting M18 x 1.5 in L12.

Answer by: Customer Support on Feb 12, 2026, 9:25 PM
