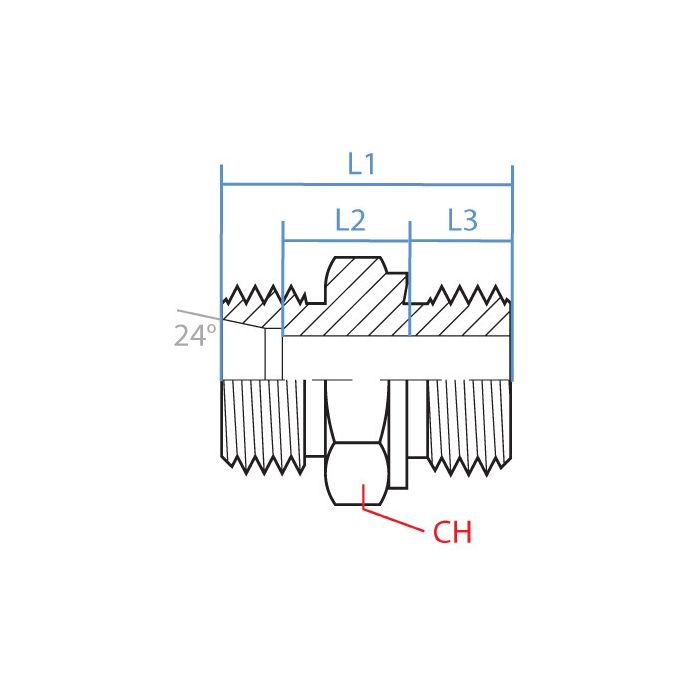

Ss Din X Mbspp No Seal

Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5001L-12-06	Product Weight 0.09 lbs

Product Questions & Answers 2

Product Questions & Answers

got a DIN tube fitting that’s M18 x 1.5 on one end and a G 3/8-19 BSPP port on the other. is this the straight adapter for that?

Question by: Chad H on Feb 26, 2026, 7:03 AM

For matching those thread standards, this adapter is set up exactly that way. One side is a male DIN tube fitting with M18 x 1.5 threads, and the other side is a male BSPP with a G 3/8-19 thread, in a straight body.

Answer by: Customer Support on Feb 28, 2026, 6:52 AM

Got a machine running DIN tube fittings on one end and BSPP ports on the other, does this fitting bridge those two without needing extra adapters in between?

Question by: Troy M on Jul 1, 2025, 9:23 AM

Yeah, that's exactly what it's built for. One side threads into an M18 x 1.5 DIN tube fitting, and the other side is a male BSPP port at G 3/8-19. One fitting, one connection, no stacking required.

Answer by: Customer Support on Jul 3, 2025, 9:03 AM
