Ss Din Union Tee

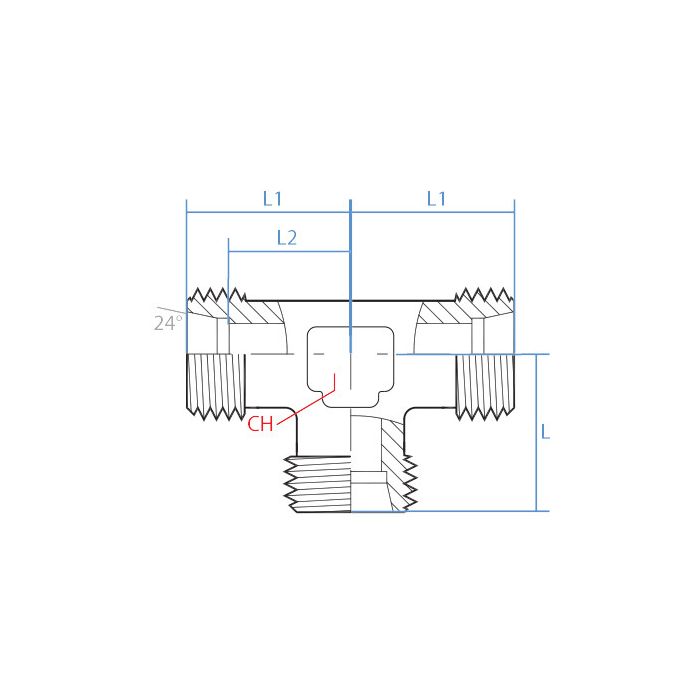

CH Width 19mm	L1 Length 28mm	L2 Length 21mm	Adaptall Material Stainless	Adaptall Shape Tee	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size L15	Side 2 Type Din Tube	Side 3 Callout M22 X 1.5	Side 3 Gender M	Side 3 Size L15	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5080L-15	Product Weight 0.29 lbs

Product Questions & Answers 2

Product Questions & Answers

All three ports on this thing are M22 x 1.5 male DIN, right? Just want to make sure before I order a handful of em.

Question by: Larry A on Jan 15, 2026, 6:57 PM

all three sides are M22 x 1.5 male DIN tube connections, each at the L15 size. So whatever you're threading into it needs to match that female DIN tube fitting on the other end. No mixing of sizes or thread types across the ports on this one.

Answer by: Customer Support on Jan 17, 2026, 6:14 AM

trying to tee off a DIN tube line, are all three ends on this one M22 x 1.5 male in L15?

Question by: Donna J on Aug 13, 2025, 2:21 PM

All three ports match. It is a stainless DIN union tee with three M22 x 1.5 male DIN tube connections, each called out as size L15.

Answer by: Customer Support on Aug 15, 2025, 2:20 PM
