Ss Din Union Tee Complete

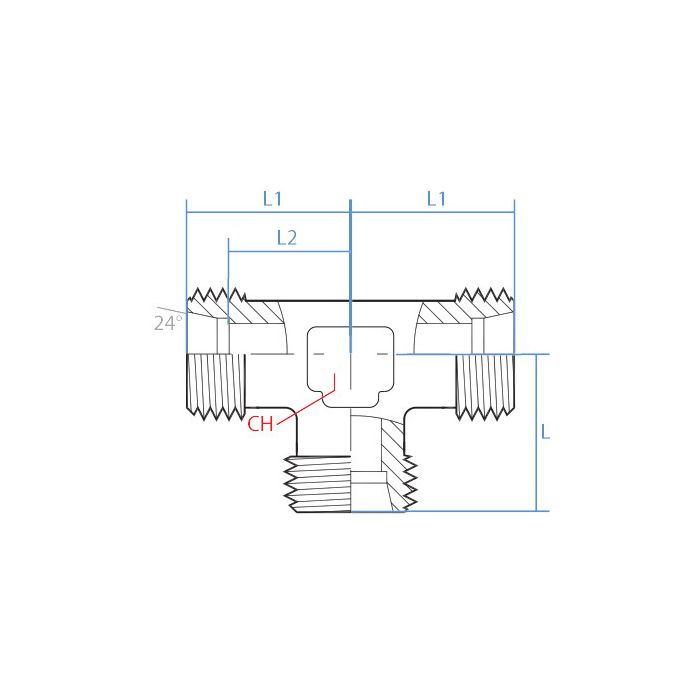

CH Width 17mm	L1 Length 24mm	L2 Length 17mm	Adaptall Material Stainless	Adaptall Shape Tee	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size L12	Side 2 Type Din Tube	Side 3 Callout M18 X 1.5	Side 3 Gender M	Side 3 Size L12	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5080L-12C	Product Weight 0.36 lbs

Product Questions & Answers

trying to tee off a DIN tube line, are all three ends on this one the same size?

Question by: Ross T on Jul 17, 2025, 9:24 AM

All three connections are DIN tube ends with the same callout, M18 x 1.5, and they are all size L12 with male (M) ends.

Answer by: Customer Support on Jul 18, 2025, 7:12 PM
