Adaptall Ss Din Bulkhead Union SS5040L-12

Specifications

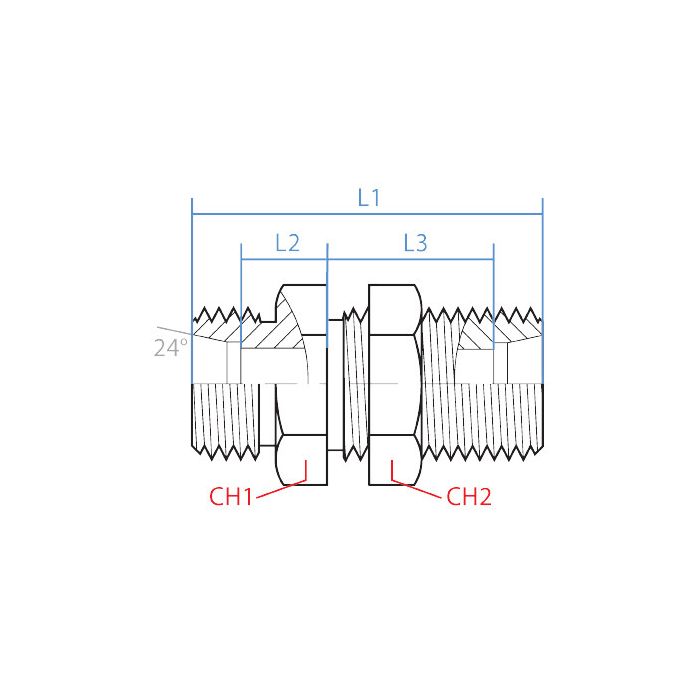

CH1 Width 24mm	CH2 Width 24mm	L1 Length 53mm	L2 Length 10mm	L3 Length 29mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size L12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5040L-12	Product Weight 0.18 lbs

Product Questions & Answers 2

Product Questions & Answers

Both sides on this thing are M18 x 1.5 male thread, does that mean it's fully symmetrical, or is there some difference between the two ends I ought to know about?

Question by: Harold S on Apr 16, 2025, 6:38 AM

Symmetrical is exactly right. Both sides carry the same M18 x 1.5 male thread in an L12 DIN tube size, so there's no designated inlet or outlet end. Either side connects the same way, which makes installation a little more straightforward when you're working through a panel and don't have a lot of room to maneuver.

Answer by: Customer Support on Apr 18, 2025, 6:56 AM

got a stainless bulkhead fitting that takes DIN tube on both sides, is this one the straight-through style or is it stepped somehow?

Question by: Cindy H on Feb 17, 2026, 11:09 AM

Straight-through is what you are getting here. It is a stainless steel bulkhead union with DIN tube connections on both sides, and both ends are the same size and thread, M18 x 1.5 male for L12 tube.

Answer by: Customer Support on Feb 18, 2026, 7:16 PM
