Adaptall Ss 90* Din Union Complete SS5055L-12C

Specifications

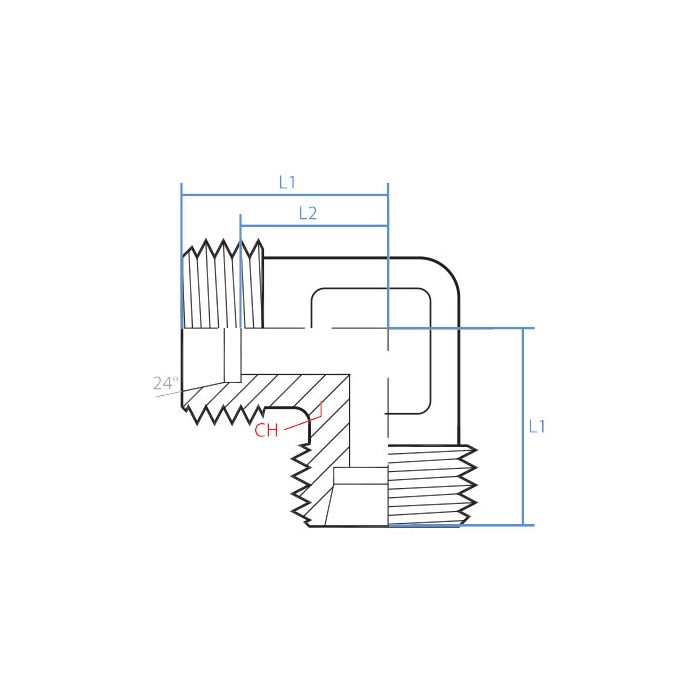

CH Width 17mm	L1 Length 24mm	L2 Length 17mm	Adaptall Material Stainless	Adaptall Shape 90° Elbow	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size L12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS5055L-12C	Product Weight 0.25 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap out an elbow union ive got now. are both ends on this one M18 x 1.5 male for DIN tube?

Question by: Dean E on Jan 22, 2026, 5:47 PM

Both sides are M18 x 1.5 male threads, and each end is called out as DIN tube type in size L12, so it matches a DIN tube union with male ends on both sides.

Answer by: Customer Support on Jan 23, 2026, 7:02 PM

both sides are M18 x 1.5 male thread on this thing, does that mean I need union nuts or some kind of mating piece to actually connect it in my line?

Question by: Neal T on Dec 9, 2025, 7:25 AM

Correct, and that's a real important detail to catch before ordering. Both ends carry an M18 x 1.5 male DIN tube thread, so you'll need the appropriate female union nuts or mating fittings on your tube ends to complete the connection. This is a union-style fitting, meaning those mating components are what clamp the tube seats against the fitting body. If your existing line already has DIN union nuts sized for L12 tubing, you're in good shape.

Answer by: Customer Support on Dec 10, 2025, 11:35 AM

Just want to make sure, this is stainless steel, right? Don't want it rusting out on me.

Question by: Diane W on Feb 11, 2026, 12:41 PM

Yes sir, it's made from stainless steel, so you shouldn't have any problems with rust.

Answer by: Customer Support on Feb 12, 2026, 4:14 PM
