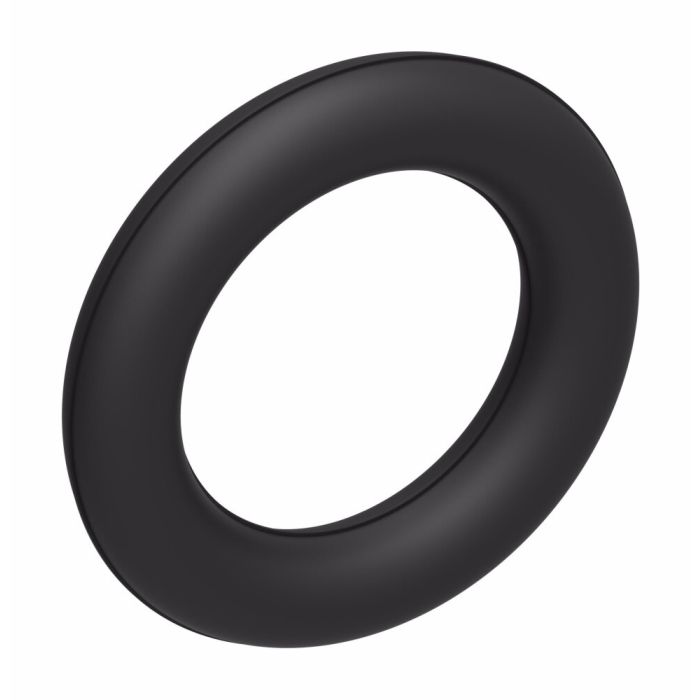

O-Ring for SAE J518 Split Flange Fittings & Adapters, 0.75 Inch

Dash Size -12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	Flange Size 0.75	I.D. 0.984 in	Materials Buna-N (90 durometer)	O.D. 1.262 in	Supplier Part Number FF9446-214	Temperature Range -40 to +250	Thread Sealant No	Product Weight 0.01 lbs	Alternate Part Numbers Alternate Part Number C1CV57, Alternate Part Number MI-00298710, Alternate Part Number MINO-00015F47142, Alternate Part Number SFO-12

Product Questions & Answers 4

Product Questions & Answers

what temp range does this o-ring handle? got equipment running pretty hot and just want to make sure it ain't gonna break down on me

Question by: Shane H on Mar 2, 2026, 9:26 PM

Buna-N at 90 durometer runs from -40 up to 250 degrees Fahrenheit, so it holds up through cold startups and sustained heat without going soft or cracking prematurely. That range covers most hydraulic system operating conditions without issue.

Answer by: Customer Support on Mar 4, 2026, 6:52 AM

got a split flange setup, flange size is 0.75. is this the right o-ring or am i off a size?

Question by: Steve B on Dec 17, 2025, 9:05 AM

For a 0.75 inch SAE J518 split flange fitting or adapter, this is the matching split flange O-ring size. It is the -12 dash size, with a 0.984 inch ID and 1.262 inch OD, so it lines up with that 0.75 flange application.

Answer by: Customer Support on Dec 19, 2025, 6:11 AM

Will this fit my SAE J518 split flange? It's a 3/4 inch size.

Question by: Dustin R on Oct 31, 2025, 10:13 AM

This O-ring is specifically made for SAE J518 split flange fittings and adapters that are 0.75 inches in size.

Answer by: Customer Support on Nov 2, 2025, 8:02 AM

got a 3/4 inch SAE J518 split flange fitting that needs a new o-ring, this the right one for that size?

Question by: Warren B on Dec 15, 2025, 8:53 PM

For a 3/4 inch SAE J518 split flange fitting, yes this is the correct o-ring. The flange size is 0.75 inches, the inside diameter measures 0.984 inches, and the outside diameter comes in at 1.262 inches with a width of 0.139 inches. Those dimensions are built specifically around the J518 standard for that flange size, so it should drop right in where your old one came out.

Answer by: Customer Support on Dec 17, 2025, 8:01 AM

Similar Products

Model Number	Flange Size	Dash Size	Materials	Temperature Range	I.D.	Width (E)	O.D.
FF9446-214	0.75	-12	Buna-N (90 durometer)	-40 to +250	0.984 in	0.139	1.262 in
FF9446-219	1	-16	Buna-N (90 durometer)	-40 to +250	1.296 in	0.139	1.574 in
FF9446-222	1.25	-20	Buna-N (90 durometer)	-40 to +250	1.484 in	0.139	1.762 in
FF9446-225	1.5	-24	Buna-N (90 durometer)	-40 to +250	1.859 in	0.139	2.137 in
FF9446-228	2	-32	Buna-N (90 durometer)	-40 to +250	2.234 in	0.139	2.512 in
FF9446-210	0.5	-08	Buna-N (90 durometer)	-40 to +250	0.734 in	0.139	1.012 in
