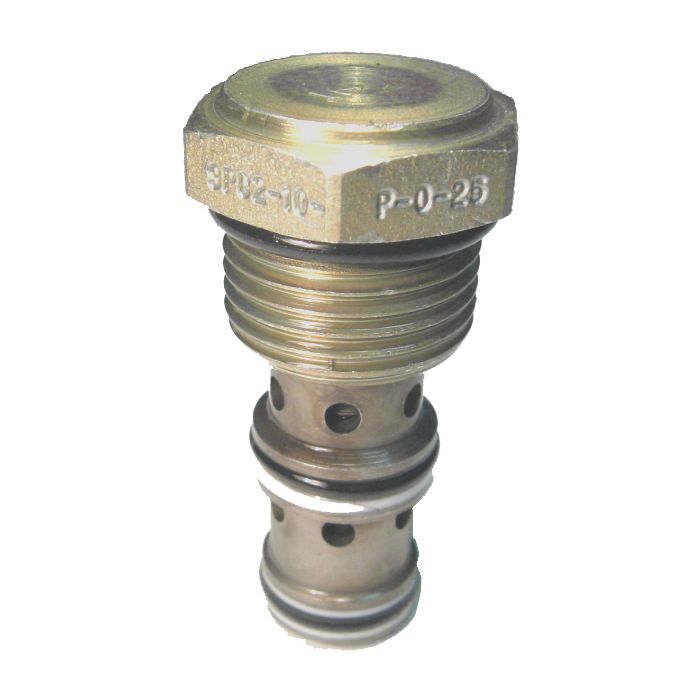

SPC2-10 Series Single Pilot Operated Cartridge Check Valves, Up To 3000 PSI & 6 GPM
Cartridge |
Model SPC2-10*, sold separately. |
Flow Rating |
6 GPM. |
Housing |
Cavity size C-10-3, sold separately, see |
Maximum Operating Pressure |
3000 PSI. |
Pilot Ratios |
4:1 |
Recommended Filtration |
ISO 4406 Cleanliness Level 18/16/13 or cleaner. |
Temperature Range |
-4°F to 150°F (180°F is extreme condition upper limit). |
Products
| Part Number | Model Number | Cracking Pressure (psi) | Seal Material | Price | Buy Now |
|---|---|---|---|---|---|
| 565619 | SPC2-10-P-0-25 | 25 | Buna-N |
|
