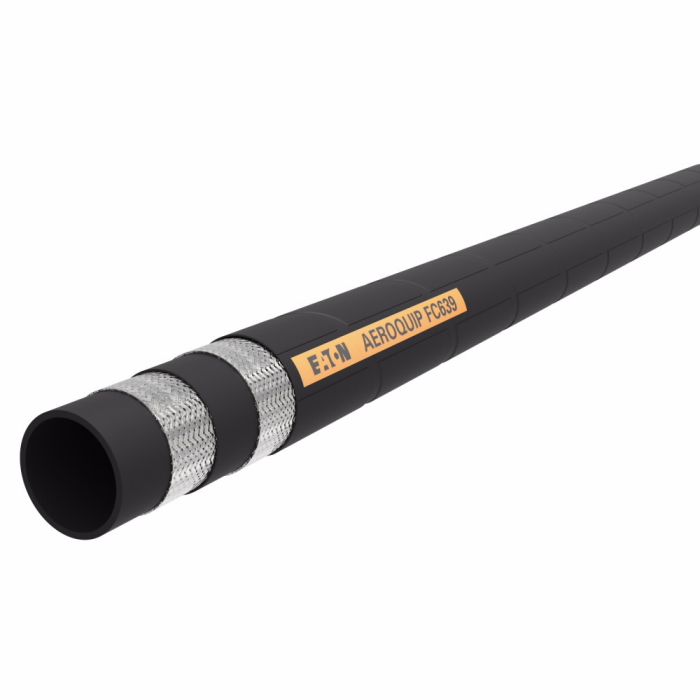

Single & Double Wire Braid SAE 100R17 Hose, 1.00 Inch ID, Up to 3000.00 PSI

Abrasion Resistance 29	Application Refined petroleum based fluids.	Color Black	Conductivity 30	Construction 2-ply braid	Cover Material Synthetic Rubber	Dash Size -16	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Hose I.D. 1	Hose O.D. 1.43	Lay Line Style Ink Transfer	Maximum Operating Pressure 3000	Minimum Bend Radius 6	Minimum Bend Radius 6	Minimum Working Temperature -40	Reel Qty (ft) 125-200	Reinforcement Material Wire	Supplier Part Number FC639-16RL	Tube Material Synthetic Rubber	Alternate Part Numbers Alternate Part Number C1ZX94, Alternate Part Number FC639-16RL	Product Weight 0.92 lbs

Product Questions & Answers 2

Product Questions & Answers

Running a 1-inch line on a petroleum-based hydraulic system, figured this might be the right hose but wanted to make sure before I order a whole reel. Refined petroleum fluids only, or is there more flexibility than that?

Question by: Gene H on Apr 25, 2025, 9:39 AM

Refined petroleum-based fluids are the stated application for this hose, so you're in the right ballpark for that kind of system. The cover is synthetic rubber with standard abrasion resistance, and the construction is a 2-ply wire braid rated up to 3000 PSI at 1.00-inch ID. For petroleum-based hydraulic fluid lines, it's a solid fit. Just make sure your working pressure stays within that 3000 PSI ceiling and you're good to go.

Answer by: Customer Support on Apr 27, 2025, 6:31 AM

If I'm pumpin' some pretty heavy stuff through this, will the outside hold up okay? I'm not tryin' to replace this thing every few months.

Question by: Troy S on Feb 24, 2026, 8:11 AM

This hose is made with a synthetic rubber cover that offers standard abrasion resistance, so it should hold up reasonably well under normal wear and tear.

Answer by: Customer Support on Feb 25, 2026, 8:47 PM

Similar Products

Model Number	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Minimum Bend Radius	Reel Qty (ft)
FC639-04	0.25	0.59	3000	2	450-550
FC639-06	0.38	0.67	3000	2.5	450-550
FC639-08	0.5	0.81	3000	3.5	450-550
FC639-12	0.75	1.14	3000	4.75	225-300
FC639-16	1	1.43	3000	6	125-200
