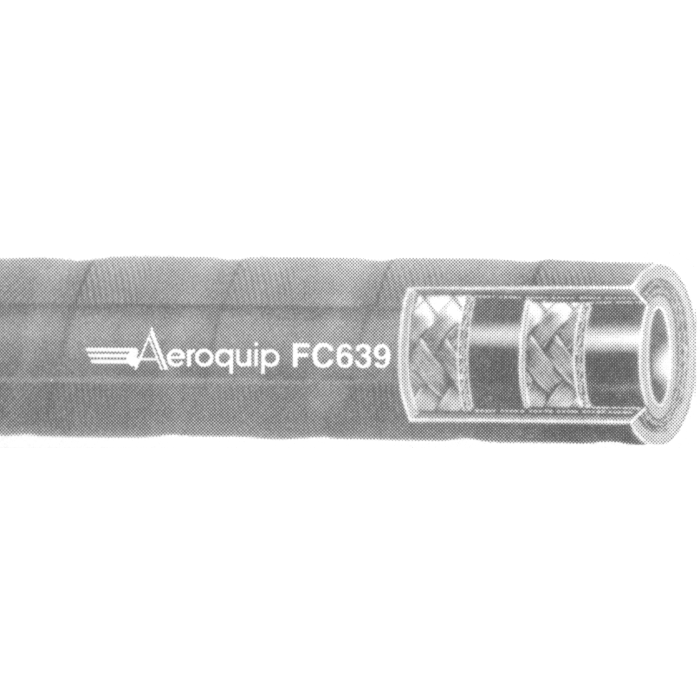

Single & Double Wire Braid SAE 100R17 Hose
Application |
General industrial & hydraulic system service with petroleum & water-base fluids. Recommended for high pressure oil lines used on construction equipment and other off-highway applications. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on |
Construction |
Synthetic rubber tube, single wire braid reinforcement (sizes -4 -6 -8), double wire braid reinforcement (sizes -10 -12 -16), ozone resistant black synthetic rubber cover. |
Temperature Range |
-40°F to 212°F. |
Products
| Model Number | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Minimum Bend Radius | Reel Qty (ft) | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|
| FC639-04 | 0.25 | 0.59 | 3000 | 2 | 450-550 |
|
||
| FC639-06 | 0.38 | 0.67 | 3000 | 2.5 | 450-550 |
|
||
| FC639-08 | 0.5 | 0.81 | 3000 | 3.5 | 450-550 |
|
||
| FC639-12 | 0.75 | 1.14 | 3000 | 4.75 | 225-300 |
|
||
| FC639-16 | 1 | 1.43 | 3000 | 6 | 125-200 |
|
