Sight Plug, Brass Body, Buna-N Seals, Stainless & Aluminum Reflector, 3/4 NPT Thread

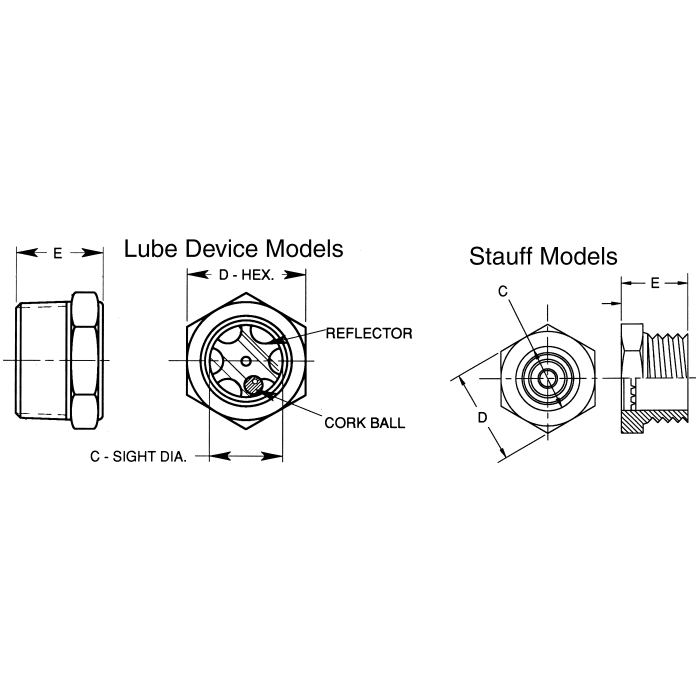

C 0.75	D 1.13	E 1	Brand LDI Industries	Brand LDI	Pack Size 1.00	UOM EA	Includes Cork Ball, Reflector	Materials Brass Body, Buna-N Seals, Stainless & Aluminum Reflector	Maximum Working Pressure 10	Mfg. Name Lube Devices	Supplier Part Number LSP151-05-02	Thread 1 3/4 NPT	Alternate Part Numbers Alternate Part Number C1ZX60, Alternate Part Number MI-02679482, Alternate Part Number MINO-00517X10034	Product Weight 0.11 lbs

Product Questions & Answers 3

Product Questions & Answers

Reckon this'll hold up okay in a hydraulic tank, or is it more for low-pressure setups?

Question by: Rex J on Jan 25, 2026, 8:43 AM

It's rated for a maximum working pressure of 10 psi, so it’s best suited for low-pressure fluid monitoring applications.

Answer by: Customer Support on Jan 27, 2026, 7:05 AM

got a tank with a 3/4 NPT port, is this the kind of sight plug that’ll thread right in

Question by: Larry R on Sep 18, 2025, 6:13 AM

Fit comes down to the thread, and this one is 3/4 NPT, so it’s meant to install into a matching 3/4 NPT threaded port for a straightforward screw-in connection.

Answer by: Customer Support on Sep 19, 2025, 5:26 PM

what's the max pressure this sight plug can handle? got a low-pressure lube line i'm trying to put a sight glass on and don't want to overspec it

Question by: Marvin M on Oct 10, 2025, 8:43 PM

Ten PSI is the rated maximum working pressure on this one. For a low-pressure lube line that's right in the wheelhouse. The brass body and Buna-N seals are well suited for that kind of fluid monitoring duty, and the cork ball plus reflector give you a clear visual on fluid presence without any complicated setup.

Answer by: Customer Support on Oct 12, 2025, 6:03 AM

Similar Products

Model Number	Thread 1	Materials	Includes	Temp. Rating	Maximum Working Pressure	C	D	E	Price	Buy Now
LSP151-05-02	3/4 NPT	Brass Body, Buna-N Seals, Stainless & Aluminum Reflector	Cork Ball, Reflector		10	0.75	1.125	1
LSP51-5	3/4 NPT	Electroless Nickel Plated Steel Body	None	500	1500	0.75	1.06	0.94
