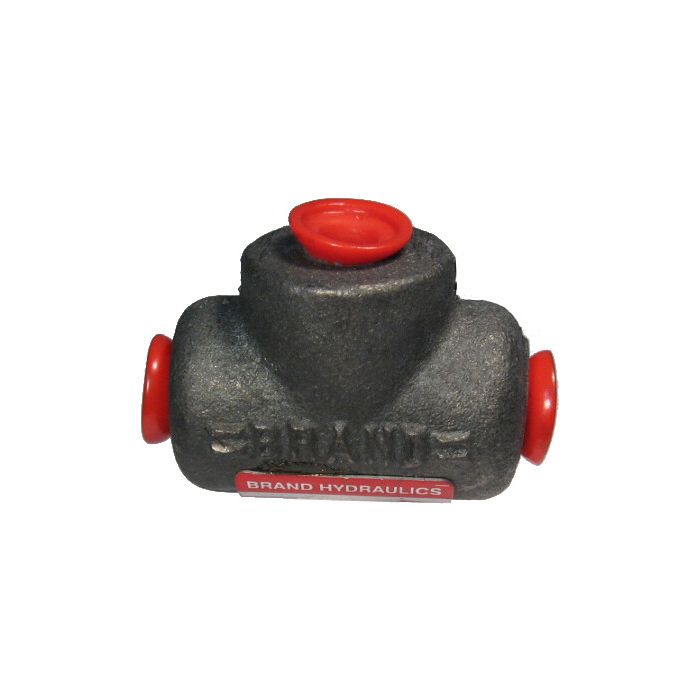

SHV Series Shuttle Valve, Cast Iron, 1/4 NPT Ports, Up To 5.00 GPM & 3000.00 PSI

Brand
Brand Hydraulics Inc.
Brand
Brand Hydraulics
Pack Size
1.00
UOM
EA
Materials
Cast Iron
Maximum Operating Pressure
3000
Peak Pressure Drop
50
Port Size
1/4 NPT
Rated Flow
5
Rated Flow
5
Alternate Part Numbers
Alternate Part Number C1GK55, Alternate Part Number MI-00970591, Alternate Part Number MINO-00127X20204
Supplier Part Number
SHV25
Product Weight
0.60 lbs

Product Questions & Answers

What exactly does this valve do when it's got pressure coming in from both inlets at the same time?
Question by: Darryl J on Jan 14, 2026, 10:33 AM
When pressure hits both inlets, the hardened steel ball inside shifts toward the lower-pressure side and blocks it off. Flow from the higher-pressure inlet gets routed through to the outlet. The two inlets stay isolated from each other the whole time, so there's no crossflow between them. That's the core job of a shuttle valve, and it handles it passively without any external signal or actuation.
Answer by: Customer Support on Jan 16, 2026, 7:40 AM
got two pressure sources going into it, does this shuttle valve keep em from backfeeding each other?
Question by: Brett G on Jul 30, 2025, 7:43 AM
With two inlets and one outlet, it routes flow from whichever inlet has the higher pressure over to the outlet while keeping the two inlet flows isolated from one another.
Answer by: Customer Support on Jul 31, 2025, 6:31 PM

Similar Products

Model Number Materials Maximum Operating Pressure Rated Flow Peak Pressure Drop Price Buy Now
SHV25 Cast Iron 3000 5 50
