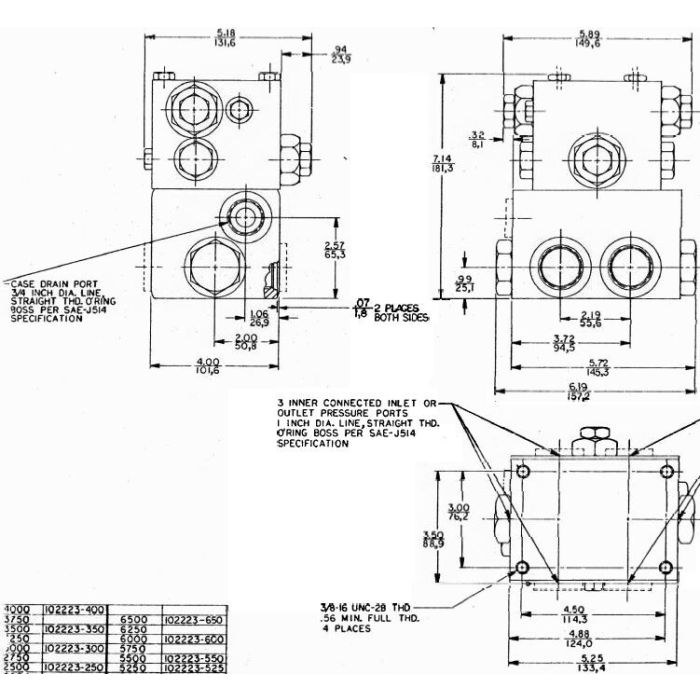

Shuttle Valve Block Manifold Assembly

Brand Danfoss Power Solutions II (Char-Lynn)	Brand Char-Lynn	Pack Size 1.00	UOM EA	High Pressure Reliefs 3500	Low Pressure Relief 160	Ports -16 SAE work port, -12 SAE drain	Ports -16 SAE work port, -12 SAE drain	Alternate Part Numbers Alternate Part Number 102223-350, Alternate Part Number C1FE41	Supplier Part Number 102223-350	Product Weight 31.81 lbs

Product Questions & Answers 1

Product Questions & Answers

flow rating on this thing goes up to 88 GPM? just want to make sure it'll handle what we're pushing through our hydrostatic system before we order

Question by: Howard C on Apr 6, 2025, 11:26 AM

88 GPM is the rated flow ceiling on this assembly. Pressure-wise it's built to handle up to 6500 PSI, so it's got plenty of headroom for most hydrostatic drive applications. The block comes preloaded with two high pressure reliefs set at 3500 PSI and a low pressure relief at 160 PSI, so you're getting a complete, ready-to-run package rather than having to source and set those valves separately.

Answer by: Customer Support on Apr 8, 2025, 6:35 AM

Similar Products

Model Number	Ports	High Pressure Reliefs	Low Pressure Relief	Price	Buy Now
0102223-350	-16 SAE work port, -12 SAE drain	3500	160
