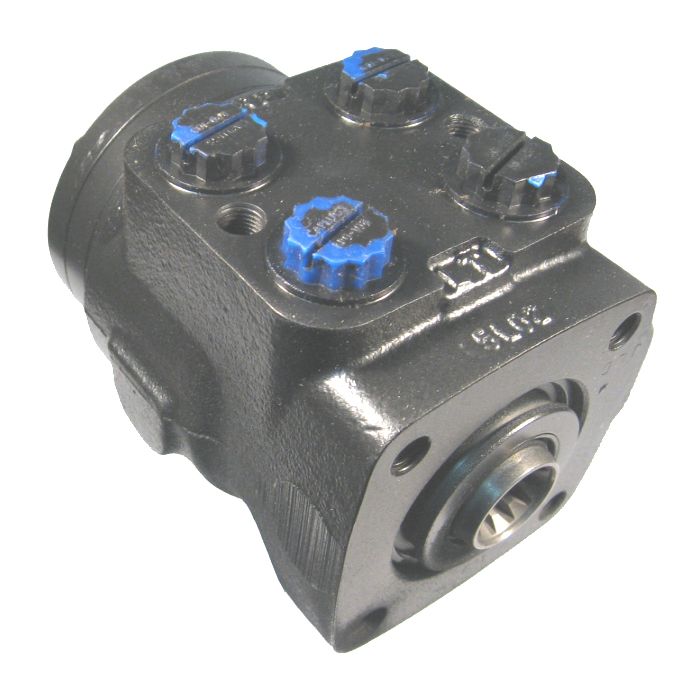

Series 3-6-12 Steering Control Units, Up To 2500 PSI & 100 lb-ft
Input Torque |
25-35 lb-in @ 100 PSI back pressure for powered applications. 100 lb-ft maximum for non-powered applications. |
Maximum Back Pressure |
300 PSI. |
Recommended Filtration |
ISO 18/13 Cleanliness Level. |
Recommended Fluids |
Most petroleum based fluids and ATF Type A. |
Temperature Range |
Maximum System Operating Temperature is 200° F. Maximum differential between steering unit and system temperature is 50° F. |
Products
| Model Number | Displacement | Flow Range | Ports | Features | Price | Buy Now |
|---|---|---|---|---|---|---|
| 211-1001 | 4.5 | 2-4 | 9/16-18 St.Thd O-Ring | Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings |
|
|
| 211-1007 | 4.5 | 4-8 | 3/4-16 St.Thd O-Ring | Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings |
|
|
| 211-1008 | 5.9 | 4-8 | 3/4-16 St.Thd O-Ring | Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings |
|
|
| 211-1009 | 7.3 | 4-8 | 3/4-16 St.Thd O-Ring | Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings |
|
|
| 211-1010 | 9.7 | 4-8 | 3/4-16 St.Thd O-Ring | Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings |
|
|
| 211-1011 | 11.3 | 4-8 | 3/4-16 St.Thd O-Ring | Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings |
|
|
| 211-1012 | 14.1 | 4-8 | 3/4-16 St.Thd O-Ring | Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings |
|
|
| 211-1158 | 17.9 | 4-8 | 3/4-16 St.Thd O-Ring | Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings |
|
|
| 211-1177 | 23.8 | 8-16 | 3/4-16 St.Thd O-Ring | Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings |
|
|
| 211-1178 | 29.7 | 8-16 | 3/4-16 St.Thd O-Ring | Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings |
|
|
| 211-1179 | 45.1 | 8-16 | 3/4-16 St.Thd O-Ring | Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings |
|
