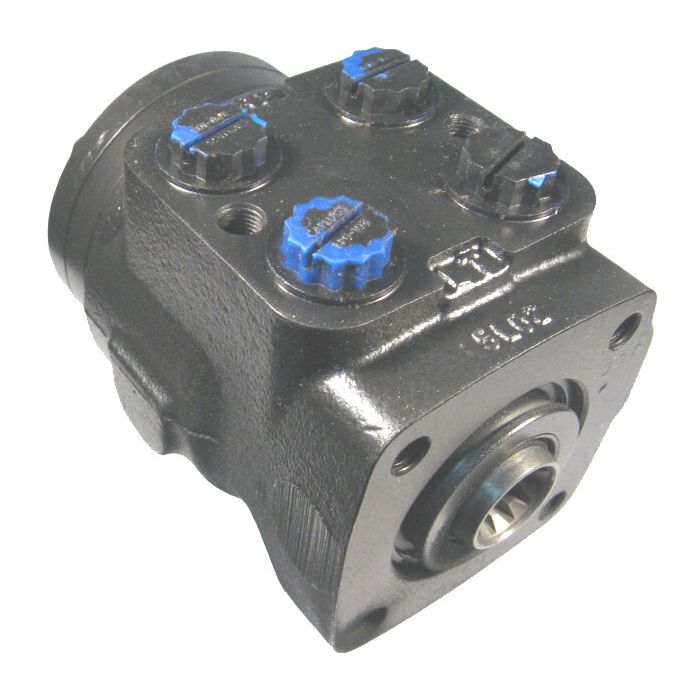

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 45.10 cu in/rev, 8-16 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Additional Ports None	Application Agricultural Equipment, Forestry Equipment, Construction Equipment, Turf Care Equipment, Industrial Equipment	Design Code 2	Displacement 45.10	Displacement 45.1	Brand PURCHASE CARD	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings	Flow Amplification None	Flow Range 8-16	Flow Rate1 45 LPM	Identification Eaton Product Number On Nameplate	Inlet Load Sense Valve Sett 0 b	Inlet Pressure Rating 172	Input Torque Standard	Integral Valves Yes	Load Circuit Non Reaction	Maximum Back Pressure 21	Mechanical Interface Internal Involute Spline, 12 Tooth 16/32 Dp 30 Degree Pa	Mounting Threads 2X .375-24 UNF-2B Port Face 4X .375-16 UNC-2B Mounting Face	Ports 3/4-16 St.Thd O-Ring	Ports 3/4-16 St.Thd O-Ring	Recommended Filtration Level ISO 18/13 Cleanliness	Return Pressure Rating 10	Special Features Low Torque Shaft Seal	Supplier Part Number 211-1179-002	Valve Options Manual Steering Check Valve	Product Weight 18.30 lbs	Alternate Part Numbers Alternate Part Number 211-1041, Alternate Part Number 211-1179-002, Alternate Part Number C1KJ56

Product Questions & Answers 1

Product Questions & Answers

got a steering setup that don’t need load reaction, is this one the non-reaction style and what kind of machines does it fit?

Question by: Gene M on Oct 4, 2025, 8:44 PM

For systems that are set up as non-load reaction, this unit matches that load circuit and is commonly used across agricultural, forestry, construction, turf care, and general industrial equipment.

Answer by: Customer Support on Oct 6, 2025, 11:55 AM

Similar Products

Model Number	Displacement	Flow Range	Ports	Features
211-1001	4.5	2-4	9/16-18 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1007	4.5	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1008	5.9	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1009	7.3	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1010	9.7	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1011	11.3	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1012	14.1	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1158	17.9	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1177	23.8	8-16	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1178	29.7	8-16	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1179	45.1	8-16	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
