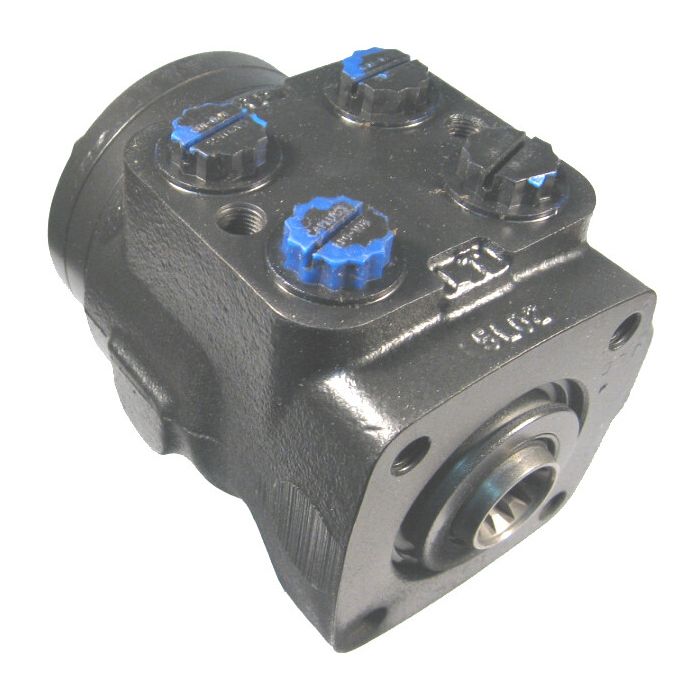

main product photo

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 23.80 cu in/rev, 8-16 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Ask A Question
Additional Ports
None
Application
Agricultural Equipment, Forestry Equipment, Construction Equipment, Turf Care Equipment, Industrial Equipment
Design Code
2
Displacement
23.80
Displacement
23.8
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
Flow Amplification
None
Flow Range
8-16
Flow Rate1
45 LPM
Identification
Eaton Product Number On Nameplate
Inlet Load Sense Valve Sett
0 b
Inlet Pressure Rating
172
Input Torque
Standard
Integral Valves
Yes
Load Circuit
Non Reaction
Maximum Back Pressure
21
Mechanical Interface
Internal Involute Spline, 12 Tooth 16/32 Dp 30 Degree Pa
Mounting Threads
2X .375-24 UNF-2B Port Face 4X .375-16 UNC-2B Mounting Face
Ports
3/4-16 St.Thd O-Ring
Ports
3/4-16 St.Thd O-Ring
Recommended Filtration Level
ISO 18/13 Cleanliness
Return Pressure Rating
10
Special Features
Low Torque Shaft Seal
Supplier Part Number
211-1177-002
Valve Options
Manual Steering Check Valve
Product Weight
14.50 lbs
Alternate Part Numbers
Alternate Part Number 211-1038, Alternate Part Number 211-1177-002, Alternate Part Number C1BC21
Product Questions & Answers 1

Product Questions & Answers

Got a loader tractor that needs a new steering unit and the old one's shot. This here is a 23.8 cu in displacement and runs 8 to 16 GPM flow range, that line up alright for a replacement on ag equipment?
Question by: Lyle C on May 26, 2025, 2:19 PM
Agricultural equipment is one of the primary applications this unit was built for, so that checks out. The 23.8 cu in/rev displacement and 8-16 GPM flow range are fixed specs on this unit, so as long as your system flow and the original unit's displacement match those numbers, you're in good shape on that front. Port size is 3/4-16 straight thread O-ring, and the mechanical interface is an internal involute spline, 12 tooth, 16/32 DP, 30 degree pressure angle. Cross those against what's coming off the machine before ordering and you'll know right away if it drops in clean.
Answer by: Customer Support on May 28, 2025, 8:16 AM

Similar Products

Model Number Displacement Flow Range Ports Features Price Buy Now
211-1001 4.5 2-4 9/16-18 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1007 4.5 4-8 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1008 5.9 4-8 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1009 7.3 4-8 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1010 9.7 4-8 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1011 11.3 4-8 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1012 14.1 4-8 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1158 17.9 4-8 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1177 23.8 8-16 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1178 29.7 8-16 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1179 45.1 8-16 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
