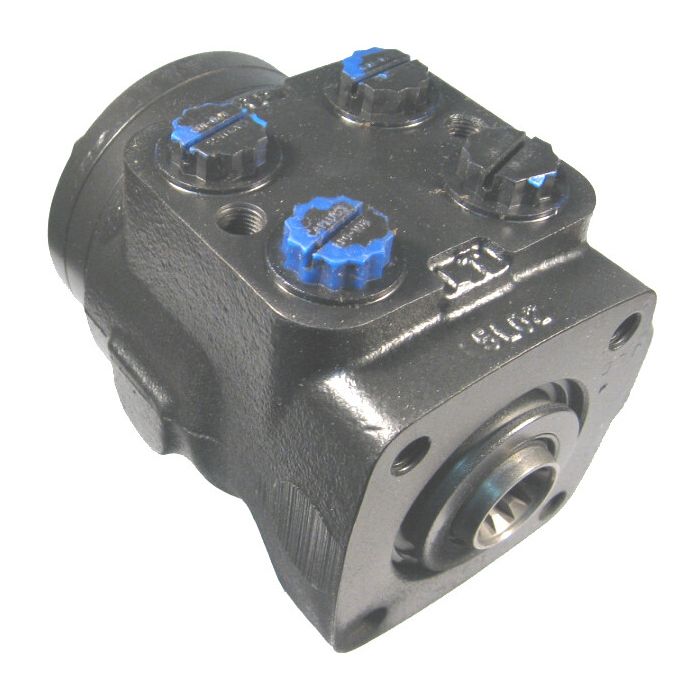

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 14.10 cu in/rev, 4-8 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Additional Ports
None
Application
Agricultural Equipment, Forestry Equipment, Construction Equipment, Turf Care Equipment, Industrial Equipment
Design Code
2
Displacement
14.10
Displacement
14.1
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
Flow Amplification
None
Flow Range
4-8
Flow Rate1
23 LPM
Identification
Eaton Product Number On Nameplate
Inlet Load Sense Valve Sett
0 b
Inlet Pressure Rating
172
Input Torque
Standard
Integral Valves
Yes
Load Circuit
Non Reaction
Maximum Back Pressure
21
Mechanical Interface
Internal Involute Spline, 12 Tooth 16/32 Dp 30 Degree Pa
Mounting Threads
2X .375-24 UNF-2B Port Face 4X .375-16 UNC-2B Mounting Face
Ports
3/4-16 St.Thd O-Ring
Ports
3/4-16 St.Thd O-Ring
Recommended Filtration Level
ISO 18/13 Cleanliness
Return Pressure Rating
10
Special Features
None
Supplier Part Number
211-1012-002
Valve Options
Manual Steering Check Valve
Product Weight
12.55 lbs
Alternate Part Numbers
Alternate Part Number 211-1012-002, Alternate Part Number C1BC17

Product Questions & Answers

got a forestry machine that's been giving me fits with the steering and i'm pretty sure the control unit is shot. this one rated for that kind of equipment?
Question by: Rick R on Aug 12, 2025, 8:53 AM
Forestry equipment is right in the wheelhouse for this unit. The Series 3-6-12 is built to handle agricultural, forestry, construction, turf care, and industrial applications, so it covers a wide range of heavy-duty uses. With a 14.10 cubic inch per revolution displacement and a 4 to 8 GPM flow range, it holds up in demanding conditions. Just make sure your system stays within the 300 PSI maximum back pressure and keeps fluid temps at or below 200 degrees F, and you should be in good shape.
Answer by: Customer Support on Aug 13, 2025, 1:00 PM
Is this steering control unit gonna work okay in my tractor? It's an older model but I need something reliable.
Question by: Sheila R on Jul 24, 2025, 3:34 PM
This unit's designed for agricultural equipment, so it should fit the bill. Just double-check your flow rate requirements against the 4-8 GPM range to make sure it's a good match.
Answer by: Customer Support on Jul 26, 2025, 6:19 AM

Similar Products

Model Number Displacement Flow Range Ports Features Price Buy Now
211-1001 4.5 2-4 9/16-18 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1007 4.5 4-8 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1008 5.9 4-8 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1009 7.3 4-8 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1010 9.7 4-8 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1011 11.3 4-8 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1012 14.1 4-8 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1158 17.9 4-8 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1177 23.8 8-16 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1178 29.7 8-16 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1179 45.1 8-16 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
