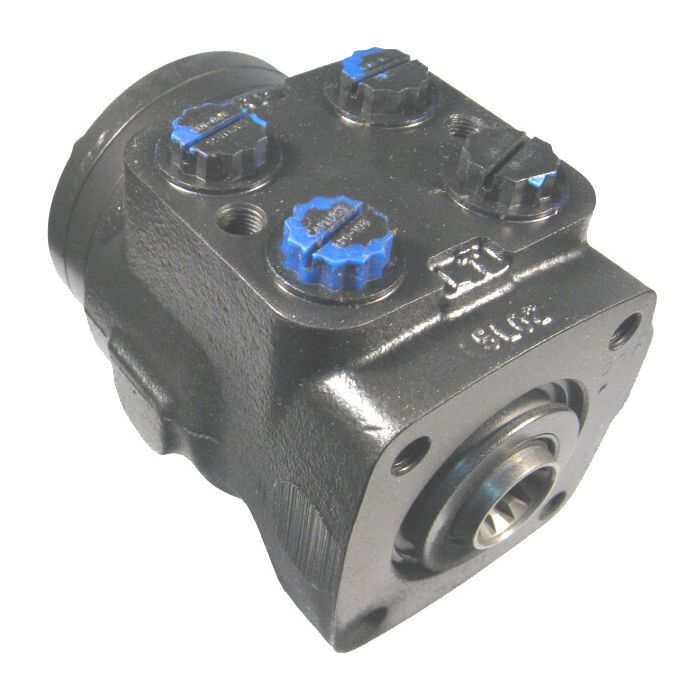

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 7.30 cu in/rev, 4-8 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Additional Ports
None
Application
Agricultural Equipment, Forestry Equipment, Construction Equipment, Turf Care Equipment, Industrial Equipment
Design Code
2
Displacement
7.30
Displacement
7.3
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
Flow Amplification
None
Flow Range
4-8
Flow Rate1
23 LPM
Identification
Eaton Product Number On Nameplate
Inlet Load Sense Valve Sett
0 b
Inlet Pressure Rating
172
Input Torque
Standard
Integral Valves
Yes
Load Circuit
Non Reaction
Maximum Back Pressure
21
Mechanical Interface
Internal Involute Spline, 12 Tooth 16/32 Dp 30 Degree Pa
Mounting Threads
2X .375-24 UNF-2B Port Face 4X .375-16 UNC-2B Mounting Face
Ports
3/4-16 St.Thd O-Ring
Ports
3/4-16 St.Thd O-Ring
Recommended Filtration Level
ISO 18/13 Cleanliness
Return Pressure Rating
10
Special Features
None
Supplier Part Number
211-1009-002
Valve Options
Manual Steering Check Valve
Product Weight
11.44 lbs
Alternate Part Numbers
Alternate Part Number 211-1009-002, Alternate Part Number C1BC14

Product Questions & Answers

got a older tractor that needs a new steering unit, displacement is 7.3 cu in/rev and ports are 3/4-16 straight thread O-ring. this one gonna match up?
Question by: Dale D on Nov 7, 2025, 8:15 AM
For port and displacement specs, yes, that lines up. The unit runs 7.30 cubic inches per revolution and uses 3/4-16 straight thread O-ring ports. Mounting is handled by a 4x .375-16 UNC-2B pattern on the mounting face, with 2x .375-24 UNF-2B on the port face. The mechanical interface is an internal involute spline, 12 tooth, 16/32 DP, 30 degree pressure angle, so you'll want to confirm your shaft matches that before ordering.
Answer by: Customer Support on Nov 9, 2025, 6:20 AM
got a steering setup that needs 4 to 8 gpm, is this unit in the right wheelhouse for that?
Question by: Frank Y on May 17, 2025, 7:08 PM
For flow, it’s set up for a 4 to 8 GPM range and the displacement is 7.30 cu in per revolution, so it matches that kind of steering circuit without needing to be pushed outside its stated flow window.
Answer by: Customer Support on May 19, 2025, 10:31 AM

Similar Products

Model Number Displacement Flow Range Ports Features Price Buy Now
211-1001 4.5 2-4 9/16-18 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1007 4.5 4-8 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1008 5.9 4-8 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1009 7.3 4-8 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1010 9.7 4-8 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1011 11.3 4-8 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1012 14.1 4-8 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1158 17.9 4-8 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1177 23.8 8-16 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1178 29.7 8-16 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
211-1179 45.1 8-16 3/4-16 St.Thd O-Ring Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings
