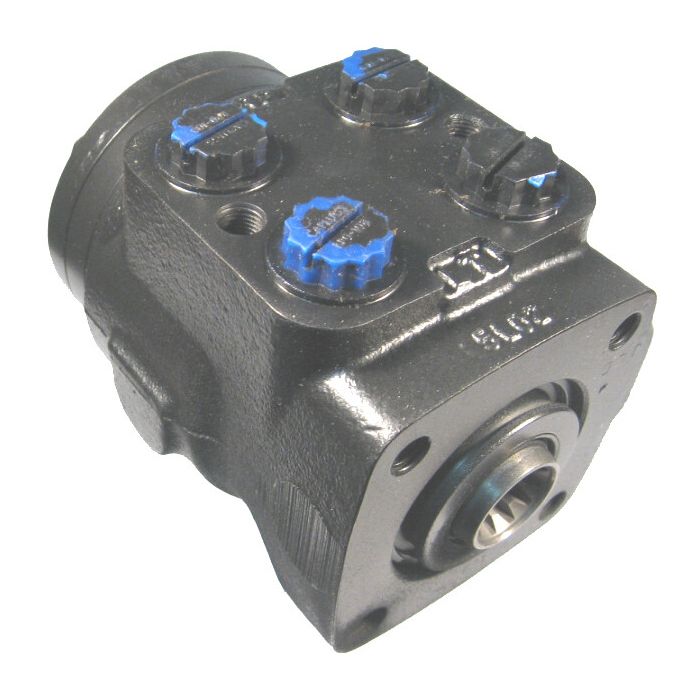

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 5.90 cu in/rev, 4-8 GPM Flow Range, 3/4-16 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Additional Ports None	Application Agricultural Equipment, Forestry Equipment, Construction Equipment, Turf Care Equipment, Industrial Equipment	Design Code 2	Displacement 5.90	Displacement 5.9	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings	Flow Amplification None	Flow Range 4-8	Flow Rate1 23 LPM	Identification Eaton Product Number On Nameplate	Inlet Load Sense Valve Sett 0 b	Inlet Pressure Rating 172	Input Torque Standard	Integral Valves Yes	Load Circuit Non Reaction	Maximum Back Pressure 21	Mechanical Interface Internal Involute Spline, 12 Tooth 16/32 Dp 30 Degree Pa	Mounting Threads 2X .375-24 UNF-2B Port Face 4X .375-16 UNC-2B Mounting Face	Ports 3/4-16 St.Thd O-Ring	Ports 3/4-16 St.Thd O-Ring	Recommended Filtration Level ISO 18/13 Cleanliness	Return Pressure Rating 10	Special Features None	Supplier Part Number 211-1008-002	Valve Options Manual Steering Check Valve	Product Weight 11.31 lbs	Alternate Part Numbers Alternate Part Number 211-1008-002, Alternate Part Number C1BC13

Product Questions & Answers 1

Product Questions & Answers

got a tractor that runs 4 to 8 gpm through the steering, would this unit be in the right range?

Question by: Cheryl P on Oct 29, 2025, 12:00 PM

For flow, it lines up. The unit is rated for a 4 to 8 GPM flow range and has a 5.90 cu in per revolution displacement, so it’s built to operate in that window.

Answer by: Customer Support on Oct 31, 2025, 10:17 AM

Similar Products

Model Number	Displacement	Flow Range	Ports	Features
211-1001	4.5	2-4	9/16-18 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1007	4.5	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1008	5.9	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1009	7.3	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1010	9.7	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1011	11.3	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1012	14.1	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1158	17.9	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1177	23.8	8-16	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1178	29.7	8-16	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1179	45.1	8-16	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
