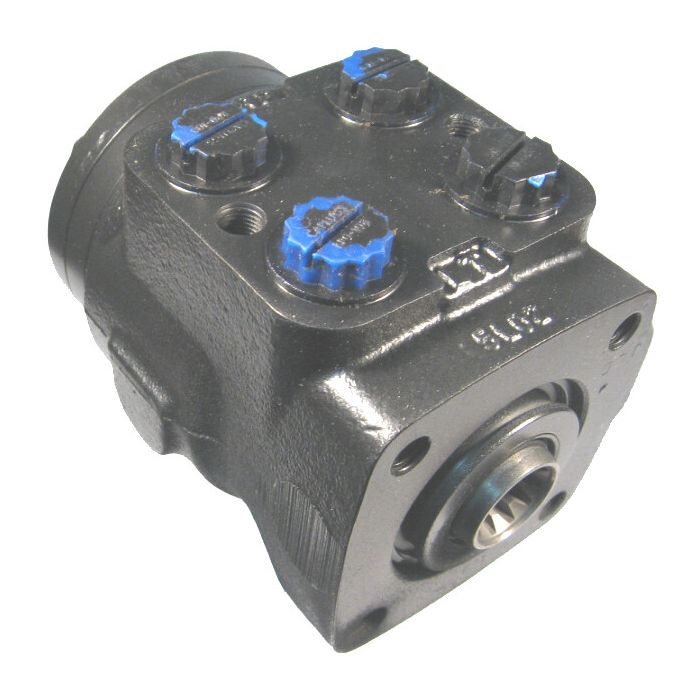

Series 3-6-12 Steering Control Unit, Non-Load Reaction, 4.50 cu in/rev, 2-4 GPM Flow Range, 9/16-18 St.Thd O-Ring Ports, Can be used in a variety of applications|Flow rate variability|Varying maximum pressure ratings

Additional Ports None	Application Agricultural Equipment, Forestry Equipment, Construction Equipment, Turf Care Equipment, Industrial Equipment	Design Code 2	Displacement 4.50	Displacement 4.5	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings	Flow Amplification None	Flow Range 2-4	Flow Rate1 11 LPM	Identification Eaton Product Number On Nameplate	Inlet Load Sense Valve Sett 0 b	Inlet Pressure Rating 172	Input Torque Standard	Integral Valves Yes	Load Circuit Non Reaction	Maximum Back Pressure 21	Mechanical Interface Internal Involute Spline, 12 Tooth 16/32 Dp 30 Degree Pa	Mounting Threads 2X .375-24 UNF-2B Port Face 4X .375-16 UNC-2B Mounting Face	Ports 9/16-18 St.Thd O-Ring	Ports 9/16-18 St.Thd O-Ring	Recommended Filtration Level ISO 18/13 Cleanliness	Return Pressure Rating 10	Special Features None	Supplier Part Number 211-1001-002	Valve Options Manual Steering Check Valve	Product Weight 11.34 lbs	Alternate Part Numbers Alternate Part Number 211-1001-002, Alternate Part Number C1BC11

Product Questions & Answers 3

Product Questions & Answers

got a steering setup that only puts out around 3 gpm. is this unit gonna be happy in that range?

Question by: Melvin K on Oct 17, 2025, 10:42 AM

For flow, you are right in its wheelhouse. The stated flow range is 2 to 4 GPM, so a 3 GPM steering supply fits the intended operating window for this steering control unit.

Answer by: Customer Support on Oct 19, 2025, 6:15 AM

Will this unit work alright on my tractor's power steering? I'm running about 3 GPM.

Question by: Glen B on Oct 7, 2025, 6:09 PM

This steering control unit should work well with your tractor, as it's designed for a flow range between 2 and 4 GPM.

Answer by: Customer Support on Oct 9, 2025, 12:23 PM

got a steering setup that’s picky on oil. what fluids will this unit run, and how clean does the system need to be?

Question by: Wayne W on Oct 11, 2025, 6:01 PM

For fluid, it’s meant to run on most petroleum based hydraulic fluids and ATF Type A. On cleanliness, the recommended filtration target is ISO 18/13.

Answer by: Customer Support on Oct 13, 2025, 4:01 PM

Similar Products

Model Number	Displacement	Flow Range	Ports	Features
211-1001	4.5	2-4	9/16-18 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1007	4.5	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1008	5.9	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1009	7.3	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1010	9.7	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1011	11.3	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1012	14.1	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1158	17.9	4-8	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1177	23.8	8-16	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1178	29.7	8-16	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
211-1179	45.1	8-16	3/4-16 St.Thd O-Ring	Can be used in a variety of applications\|Flow rate variability\|Varying maximum pressure ratings
