Series 26 Gear Pumps, Up To 24 GPM @ 1800 RPM, Up To 3000 PSI, Up To 3600 RPM

Skip to the end of the images gallery

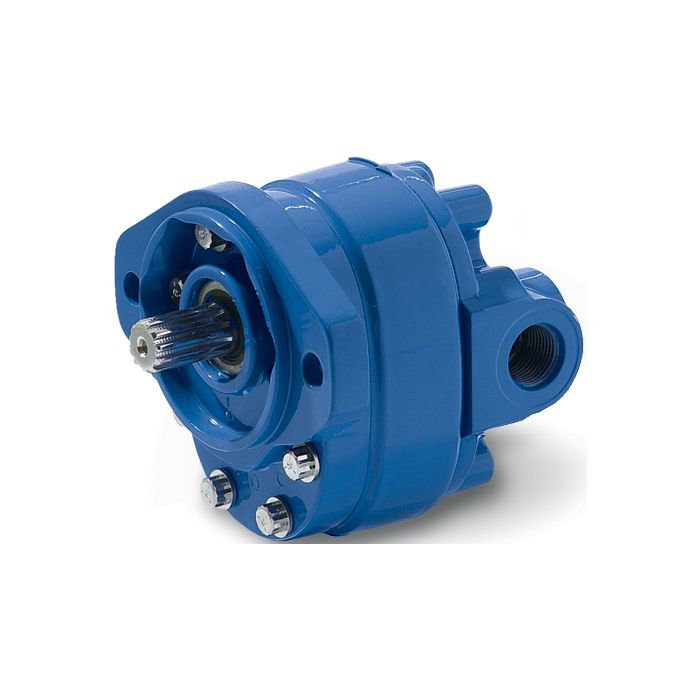

main product photo

Skip to the beginning of the images gallery

Series 26 Gear Pumps, Up To 24 GPM @ 1800 RPM, Up To 3000 PSI, Up To 3600 RPM

Application	Rotation may be reversed by reconfiguring internal parts - no extra parts are required. Simply open the pump, switch the drive gear and idler gear, reposition the plug and reassemble. Side Load Limits - contact us for assistance.
Features	13-tooth gears minimize the flow ripple for reduced noise and vibration. Bearing lubrication system uses inlet oil instead of high pressure oil, improving volumetric efficiency. Innovative wear plate permits simple rotation change.
Pressure Limit	Outlet: Varies with displacement (See table below). Inlet: Maximum inlet vacuum at operating condition 6.0 In. Hg.
Rated Speed	Varies with displacement (See table below).
Temperature Range	Minimum Operating -20°F. Maximum Continuous 220°F. Minimum Continuous Oil Viscosity 45 SSU.

Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Features	Speed Rating	Pressure Rating	Price	Buy Now
26002-RZC	0.5	3.9	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26004-RZC	0.66	5.1	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26006-RZC	1.02	7.9	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3200 RPM	3000
26007-RZC	1.2	9.3	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3200 RPM	3000
26003-RZG	0.58	4.5	2-Bolt SAE A	5/8 St. Keyed	SAE-12 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26003-RZJ	0.58	4.5	2-Bolt SAE A	9 Tooth SAE A Splined	SAE-12 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26004-RAF	0.66	5.1	2-Bolt SAE A	3/4 St.Keyed x 2 inches long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26004-RZE	0.66	5.1	2-Bolt SAE A	9 Tooth SAE A Splined	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26005-RZC	0.84	6.5	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26005-RZE	0.84	6.5	2-Bolt SAE A	9 Tooth SAE A Splined	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26007-LZC	1.2	9.3	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CCW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3200 RPM	3000
26007-RZE	1.2	9.3	2-Bolt SAE A	9 Tooth SAE A Splined	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3200 RPM	2850
26011-RZC	1.69	13.1	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3000 RPM	3000
26012-RZJ	1.77	13.7	2-Bolt SAE A	9 Tooth SAE A Splined	SAE-12 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3000 RPM	1950
26013-LZC	1.87	14.5	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CCW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3000 RPM	3000

Customers Who Bought This Item Also Bought

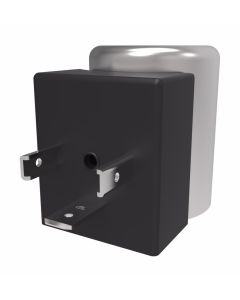

Cartridge Valve Coil, S Series 20 Watt, 12VDC, DIN 43650. Internally rectified|Compact design|Continuous duty
