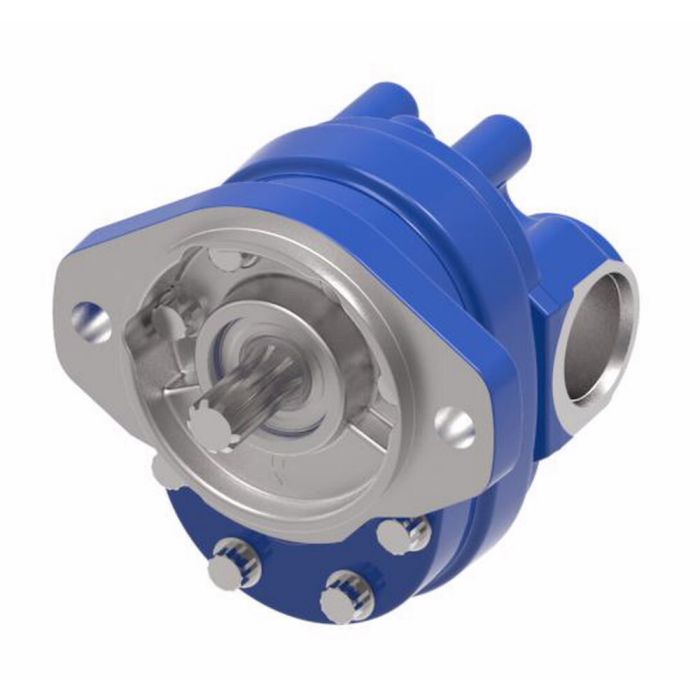

Series 26 Gear Pump, 0.84 cu in/rev, 2-Bolt SAE A Mounting Flange, 3/4 St.Keyed x 1-1/4 long Shaft, SAE-16 Side Inlet, SAE-10 Side Outlet Ports, CW Rotation.

Ask A Question
Application
Tractors & harvesters, Machine tools, Steering circuits, Compactors, Sweepers, Rotary & reel mowers, Lift trucks, Fan drive systems, Auxiliary work circuits
Configuration
32
Design Code
A
Displacement
0.84
Displacement
0.84
Brand
Danfoss Power Solutions II (Char-Lynn)
Brand
Char-Lynn
Pack Size
1.00
UOM
EA
Features
Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction
Identification
Standard
Minimum Working Temperature
-20
Mount
2-Bolt SAE A
Mount
2-Bolt SAE A
Ports
SAE-16 Side Inlet, SAE-10 Side Outlet
Ports
SAE-16 Side Inlet, SAE-10 Side Outlet
Pressure Rating
3000
Rated Flow
6.50
Rated Flow
6.5
Rotation
CW
Shaft
3/4 St.Keyed x 1-1/4 long
Shaft
3/4 St.Keyed x 1-1/4 long
Special Features
None
Speed Rating
3600 RPM
Speed Rating
3600 RPM
Supplier Part Number
26005-RZC
Alternate Part Numbers
Alternate Part Number 7-0335, Alternate Part Number C1FP92
Product Weight
7.00 lbs
Product Questions & Answers 3

Product Questions & Answers

pump says CW rotation on it -- can that be changed out if i end up needing it to spin the other way?
Question by: Dale W on Mar 6, 2026, 10:28 AM
Rotation on this pump can be reversed without needing any additional parts. You open it up, swap the drive gear and idler gear, reposition the plug, and put it back together. The wear plate design was built specifically to make that process straightforward. So if your setup ends up calling for counterclockwise rotation down the line, you're not looking at buying a different pump to make it work.
Answer by: Customer Support on Mar 8, 2026, 6:59 AM
Will this gear pump work okay on my tractor's hydraulic system? I need something reliable.
Question by: Eddie R on Dec 13, 2025, 9:55 AM
This Series 26 gear pump is designed for demanding applications like tractors and harvesters, so it should be a good fit.
Answer by: Customer Support on Dec 15, 2025, 7:13 AM
got a setup that calls for a 2-bolt SAE A mount and a 3/4 keyed shaft, 1-1/4 long. is that what this pump is?
Question by: Howard W on Dec 12, 2025, 5:26 PM
Fit-wise it matches those mounting and shaft details. It uses a 2-bolt SAE A mounting flange and a 3/4 straight keyed shaft that is 1-1/4 inches long, with SAE-16 side inlet and SAE-10 side outlet ports.
Answer by: Customer Support on Dec 13, 2025, 7:33 PM

Similar Products

Model Number Displacement Rated Flow Mount Shaft Ports Rotation Features Speed Rating Pressure Rating Price Buy Now
26002-RZC 0.5 3.9 2-Bolt SAE A 3/4 St.Keyed x 1-1/4 long SAE-16 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3600 RPM 3000
26004-RZC 0.66 5.1 2-Bolt SAE A 3/4 St.Keyed x 1-1/4 long SAE-16 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3600 RPM 3000
26006-RZC 1.02 7.9 2-Bolt SAE A 3/4 St.Keyed x 1-1/4 long SAE-16 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3200 RPM 3000
26007-RZC 1.2 9.3 2-Bolt SAE A 3/4 St.Keyed x 1-1/4 long SAE-16 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3200 RPM 3000
26003-RZG 0.58 4.5 2-Bolt SAE A 5/8 St. Keyed SAE-12 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3600 RPM 3000
26003-RZJ 0.58 4.5 2-Bolt SAE A 9 Tooth SAE A Splined SAE-12 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3600 RPM 3000
26004-RAF 0.66 5.1 2-Bolt SAE A 3/4 St.Keyed x 2 inches long SAE-16 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3600 RPM 3000
26004-RZE 0.66 5.1 2-Bolt SAE A 9 Tooth SAE A Splined SAE-16 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3600 RPM 3000
26005-RZC 0.84 6.5 2-Bolt SAE A 3/4 St.Keyed x 1-1/4 long SAE-16 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3600 RPM 3000
26005-RZE 0.84 6.5 2-Bolt SAE A 9 Tooth SAE A Splined SAE-16 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3600 RPM 3000
26007-LZC 1.2 9.3 2-Bolt SAE A 3/4 St.Keyed x 1-1/4 long SAE-16 Side Inlet, SAE-10 Side Outlet CCW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3200 RPM 3000
26007-RZE 1.2 9.3 2-Bolt SAE A 9 Tooth SAE A Splined SAE-16 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3200 RPM 2850
26011-RZC 1.69 13.1 2-Bolt SAE A 3/4 St.Keyed x 1-1/4 long SAE-16 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3000 RPM 3000
26012-RZJ 1.77 13.7 2-Bolt SAE A 9 Tooth SAE A Splined SAE-12 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3000 RPM 1950
26013-LZC 1.87 14.5 2-Bolt SAE A 3/4 St.Keyed x 1-1/4 long SAE-16 Side Inlet, SAE-10 Side Outlet CCW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3000 RPM 3000
