main product photo

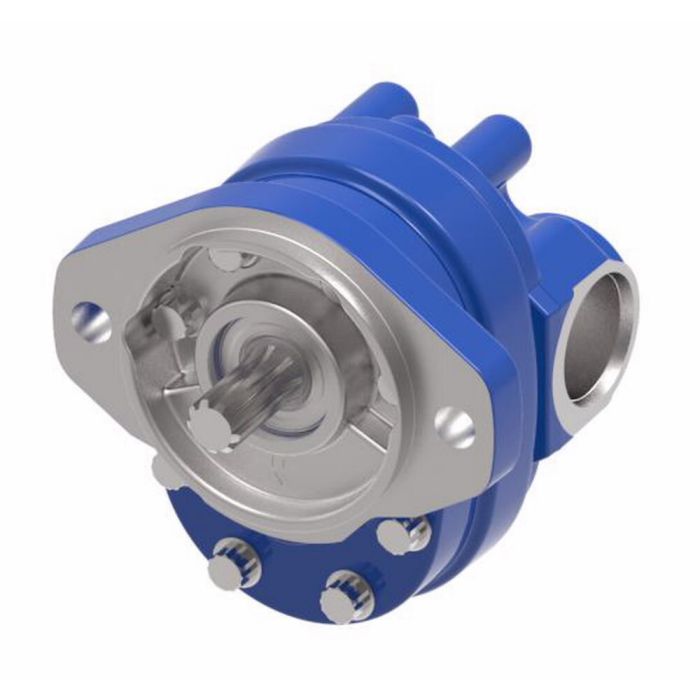

Series 26 Gear Pump, 0.66 cu in/rev, 2-Bolt SAE A Mounting Flange, 9 Tooth SAE A Splined Shaft, SAE-16 Side Inlet, SAE-10 Side Outlet Ports, CW Rotation.

Ask A Question
Application
Tractors & harvesters, Machine tools, Steering circuits, Compactors, Sweepers, Rotary & reel mowers, Lift trucks, Fan drive systems, Auxiliary work circuits
Configuration
32
Design Code
A
Displacement
0.66
Displacement
0.66
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction
Identification
Standard
Minimum Working Temperature
-20
Mount
2-Bolt SAE A
Mount
2-Bolt SAE A
Ports
SAE-16 Side Inlet, SAE-10 Side Outlet
Ports
SAE-16 Side Inlet, SAE-10 Side Outlet
Pressure Rating
3000
Rated Flow
5.10
Rated Flow
5.1
Rotation
CW
Shaft
9 Tooth SAE A Splined
Shaft
9 Tooth SAE A Splined
Special Features
None
Speed Rating
3600 RPM
Speed Rating
3600 RPM
Supplier Part Number
26004-RZE
Alternate Part Numbers
Alternate Part Number C1JB85
Product Weight
6.00 lbs
Product Questions & Answers 2

Product Questions & Answers

Will this gear pump work on my tractor's hydraulic system, or is it more for industrial equipment?
Question by: Frank M on Jun 1, 2025, 5:40 PM
This Series 26 gear pump is suitable for tractors and harvesters, along with machine tools and steering circuits. It's also used in compactors, sweepers, rotary mowers, lift trucks, and auxiliary work circuits.
Answer by: Customer Support on Jun 3, 2025, 6:42 AM
got a setup that needs a clockwise pump, 2-bolt SAE A mount, and a 9-tooth SAE A spline. Is this one that exact combo?
Question by: Denise C on Nov 3, 2025, 2:01 PM
The key callouts on this pump are CW rotation, a 2-bolt SAE A mounting flange, and a 9-tooth SAE A splined shaft. Porting is side inlet SAE-16 and side outlet SAE-10, so it matches that layout as well.
Answer by: Customer Support on Nov 5, 2025, 8:45 AM

Similar Products

Model Number Displacement Rated Flow Mount Shaft Ports Rotation Features Speed Rating Pressure Rating Price Buy Now
26002-RZC 0.5 3.9 2-Bolt SAE A 3/4 St.Keyed x 1-1/4 long SAE-16 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3600 RPM 3000
26004-RZC 0.66 5.1 2-Bolt SAE A 3/4 St.Keyed x 1-1/4 long SAE-16 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3600 RPM 3000
26006-RZC 1.02 7.9 2-Bolt SAE A 3/4 St.Keyed x 1-1/4 long SAE-16 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3200 RPM 3000
26007-RZC 1.2 9.3 2-Bolt SAE A 3/4 St.Keyed x 1-1/4 long SAE-16 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3200 RPM 3000
26003-RZG 0.58 4.5 2-Bolt SAE A 5/8 St. Keyed SAE-12 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3600 RPM 3000
26003-RZJ 0.58 4.5 2-Bolt SAE A 9 Tooth SAE A Splined SAE-12 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3600 RPM 3000
26004-RAF 0.66 5.1 2-Bolt SAE A 3/4 St.Keyed x 2 inches long SAE-16 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3600 RPM 3000
26004-RZE 0.66 5.1 2-Bolt SAE A 9 Tooth SAE A Splined SAE-16 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3600 RPM 3000
26005-RZC 0.84 6.5 2-Bolt SAE A 3/4 St.Keyed x 1-1/4 long SAE-16 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3600 RPM 3000
26005-RZE 0.84 6.5 2-Bolt SAE A 9 Tooth SAE A Splined SAE-16 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3600 RPM 3000
26007-LZC 1.2 9.3 2-Bolt SAE A 3/4 St.Keyed x 1-1/4 long SAE-16 Side Inlet, SAE-10 Side Outlet CCW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3200 RPM 3000
26007-RZE 1.2 9.3 2-Bolt SAE A 9 Tooth SAE A Splined SAE-16 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3200 RPM 2850
26011-RZC 1.69 13.1 2-Bolt SAE A 3/4 St.Keyed x 1-1/4 long SAE-16 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3000 RPM 3000
26012-RZJ 1.77 13.7 2-Bolt SAE A 9 Tooth SAE A Splined SAE-12 Side Inlet, SAE-10 Side Outlet CW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3000 RPM 1950
26013-LZC 1.87 14.5 2-Bolt SAE A 3/4 St.Keyed x 1-1/4 long SAE-16 Side Inlet, SAE-10 Side Outlet CCW Reduced noise and vibration|Improved volumetric and mechanical efficiency|Field reversible pump direction 3000 RPM 3000
