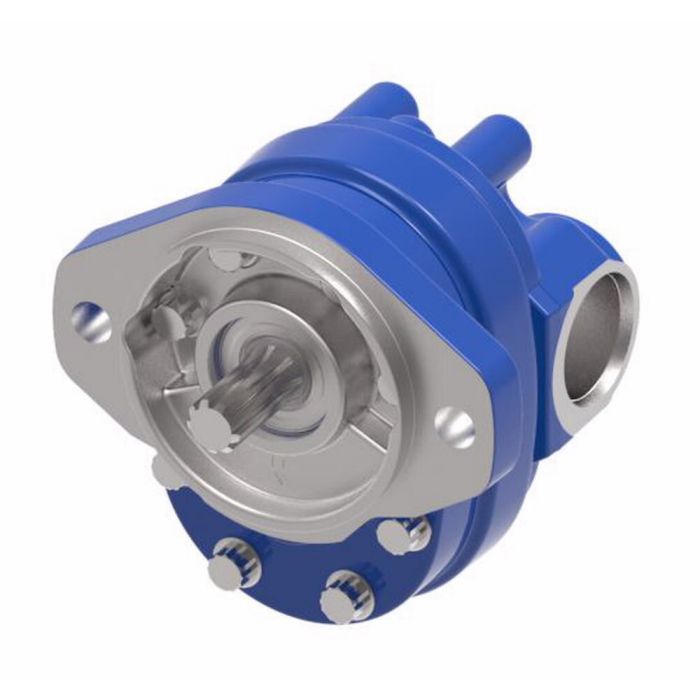

Series 26 Gear Pump, 0.50 cu in/rev, 2-Bolt SAE A Mounting Flange, 3/4 St.Keyed x 1-1/4 long Shaft, SAE-16 Side Inlet, SAE-10 Side Outlet Ports, CW Rotation.

Application Tractors & harvesters, Machine tools, Steering circuits, Compactors, Sweepers, Rotary & reel mowers, Lift trucks, Fan drive systems, Auxiliary work circuits	Configuration 32	Design Code A	Displacement 0.50	Displacement 0.5	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	Identification Standard	Minimum Working Temperature -20	Mount 2-Bolt SAE A	Mount 2-Bolt SAE A	Ports SAE-16 Side Inlet, SAE-10 Side Outlet	Ports SAE-16 Side Inlet, SAE-10 Side Outlet	Pressure Rating 3000	Rated Flow 3.90	Rated Flow 3.9	Rotation CW	Shaft 3/4 St.Keyed x 1-1/4 long	Shaft 3/4 St.Keyed x 1-1/4 long	Special Features None	Speed Rating 3600 RPM	Speed Rating 3600 RPM	Supplier Part Number 26002-RZC	Alternate Part Numbers Alternate Part Number C1JB81	Product Weight 6.00 lbs

Product Questions & Answers 2

Product Questions & Answers

got a little tractor with a steering circuit, would this pump make sense for that kind of job

Question by: Ross R on Sep 29, 2025, 3:46 PM

For steering circuits and other auxiliary work circuits, this Series 26 single gear pump is a common fit. It is a 0.50 cu in/rev pump rated at 3.9 GPM and it comes set up for clockwise rotation, which lines up well with a lot of tractor and harvester hydraulic setups.

Answer by: Customer Support on Oct 1, 2025, 6:24 AM

got a setup that spins clockwise. is this pump already set up for CW rotation or do i have to swap anything around?

Question by: Shane H on Oct 26, 2025, 6:28 PM

From the factory this one is set up for CW rotation. If you ever need to change direction later, the Series 26 is field reversible by opening the pump, swapping the drive and idler gears, moving the plug, and reassembling. No extra parts are required.

Answer by: Customer Support on Oct 28, 2025, 6:57 AM

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Features	Speed Rating	Pressure Rating
26002-RZC	0.5	3.9	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26004-RZC	0.66	5.1	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26006-RZC	1.02	7.9	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3200 RPM	3000
26007-RZC	1.2	9.3	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3200 RPM	3000
26003-RZG	0.58	4.5	2-Bolt SAE A	5/8 St. Keyed	SAE-12 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26003-RZJ	0.58	4.5	2-Bolt SAE A	9 Tooth SAE A Splined	SAE-12 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26004-RAF	0.66	5.1	2-Bolt SAE A	3/4 St.Keyed x 2 inches long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26004-RZE	0.66	5.1	2-Bolt SAE A	9 Tooth SAE A Splined	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26005-RZC	0.84	6.5	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26005-RZE	0.84	6.5	2-Bolt SAE A	9 Tooth SAE A Splined	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3600 RPM	3000
26007-LZC	1.2	9.3	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CCW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3200 RPM	3000
26007-RZE	1.2	9.3	2-Bolt SAE A	9 Tooth SAE A Splined	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3200 RPM	2850
26011-RZC	1.69	13.1	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3000 RPM	3000
26012-RZJ	1.77	13.7	2-Bolt SAE A	9 Tooth SAE A Splined	SAE-12 Side Inlet, SAE-10 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3000 RPM	1950
26013-LZC	1.87	14.5	2-Bolt SAE A	3/4 St.Keyed x 1-1/4 long	SAE-16 Side Inlet, SAE-10 Side Outlet	CCW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3000 RPM	3000
