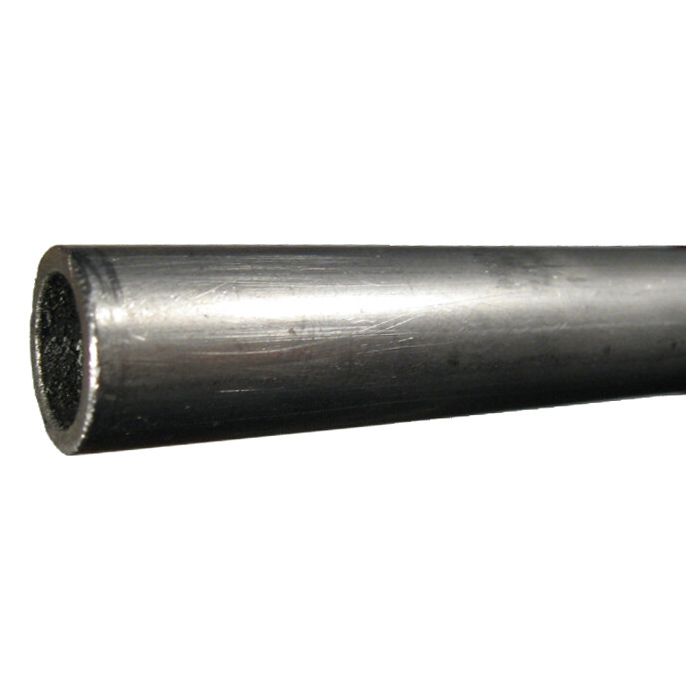

Seamless Carbon Steel Tubing, 0.63 Inch OD, 0.10 Inch Thick, 0.44 Inch ID

Burst Pressure
16720
Brand
Marmon/Keystone
Brand
Marmon - Keystone
Pack Size
12.00
UOM
FT
I.D.
0.435 in
Inside Area
0.15
Maximum Working Pressure
2787
O.D.
0.63 in
Rated Flow
6.90
Safety Factor
6:1
Supplier Part Number
5/8.095
Wall Thickness
0.10
Alternate Part Numbers
Alternate Part Number C1BR57, Alternate Part Number MI-08733681, Alternate Part Number MINO-01965X96525
Product Weight
0.35 lbs

Product Questions & Answers

got a line with 5/8 OD tubing on it now, is this the same size or am i gonna be off?
Question by: Lyle R on Oct 2, 2025, 5:41 PM
Match it up by the measurements. This tubing is 0.63 inch outside diameter, with a 0.095 inch wall and about a 0.435 inch inside diameter.
Answer by: Customer Support on Oct 4, 2025, 6:22 AM
What kinda pressure can this tubing handle without poppin'?
Question by: Cindy H on Jun 13, 2025, 7:16 PM
This seamless carbon steel tubing is rated to handle a maximum working pressure of 2787 PSI, based on SAE specification J1065.
Answer by: Customer Support on Jun 15, 2025, 4:16 PM
working pressure on this tubing is listed at 2787 psi, but we run systems that see some pretty good hydraulic shock from time to time. should i be looking at a lower number for actual use?
Question by: Johnny M on Feb 13, 2026, 6:04 AM
Good thinking to account for shock. The 2787 psi figure is already calculated using a 6:1 safety factor, which is the recommended starting point when hydraulic shock and mechanical strain are considered considerable. If your system hits severe shock conditions on a regular basis, an 8:1 safety factor applies, and you'd want to work off a lower safe operating pressure than what's listed. For lighter duty where shock really isn't a concern, a 4:1 factor and higher working pressures can be carefully considered. Match the safety factor to your actual conditions and size accordingly.
Answer by: Customer Support on Feb 14, 2026, 10:22 AM
got a piece of tubing here that measures right at 5/8 OD. is this the one with about a .095 wall and around .44 ID?
Question by: Tony J on Dec 14, 2025, 5:01 PM
The key dimensions on this tube are 0.63 inch outside diameter with a 0.095 inch wall, which puts the inside diameter at about 0.435 inch (often rounded to 0.44). If your measurements are landing in that neighborhood, it matches.
Answer by: Customer Support on Dec 16, 2025, 8:52 AM

Similar Products

Model Number O.D. Wall Thickness I.D. Inside Area Rated Flow Maximum Working Pressure Burst Pressure Safety Factor Price Buy Now
1/2.049 0.5 in 0.049 0.402 in 0.1269 6 1797 10780 6:1
1/2.065 0.5 in 0.065 0.37 in 0.1075 4.9 2383 14300 6:1
1/4.049 0.25 in 0.049 0.152 in 0.0181 0.8 3593 21560 6:1
3/8.049 0.375 in 0.049 0.277 in 0.0602 2.8 2396 14373 6:1
3/8.065 0.375 in 0.065 0.245 in 0.0471 2.6 3178 19067 6:1
5/8.095 0.63 in 0.095 0.435 in 0.1485 6.9 2787 16720 6:1
1-1/4.095 1.25 in 0.095 1.06 in 0.882 41 1393 8360 6:1
1-1/4.120 1.25 in 0.12 1.01 in 0.8008 36.7 1760 10560 6:1
1.065 1 in 0.065 0.87 in 0.5942 28.1 1192 7150 6:1
1.120 1 in 0.12 0.76 in 0.4534 20.7 2200 13200 6:1
1/2.083 0.5 in 0.083 0.334 in 0.0876 4 3043 18260 6:1
3/16.035 0.1875 in 0.035 0.1175 in 0.0108 0.4 3422 20533 6:1
3/4.049 0.75 in 0.049 0.652 in 0.3337 15.4 1198 7187 6:1
3/4.065 0.75 in 0.065 0.62 in 0.3018 12 1589 9533 6:1
3/4.095 0.75 in 0.095 0.56 in 0.2462 11 2322 13933 6:1
3/4.109 0.75 in 0.109 0.532 in 0.2222 10.6 2664 15987 6:1
5/8.065 0.63 in 0.065 0.495 in 0.1923 9 1907 11440 6:1
