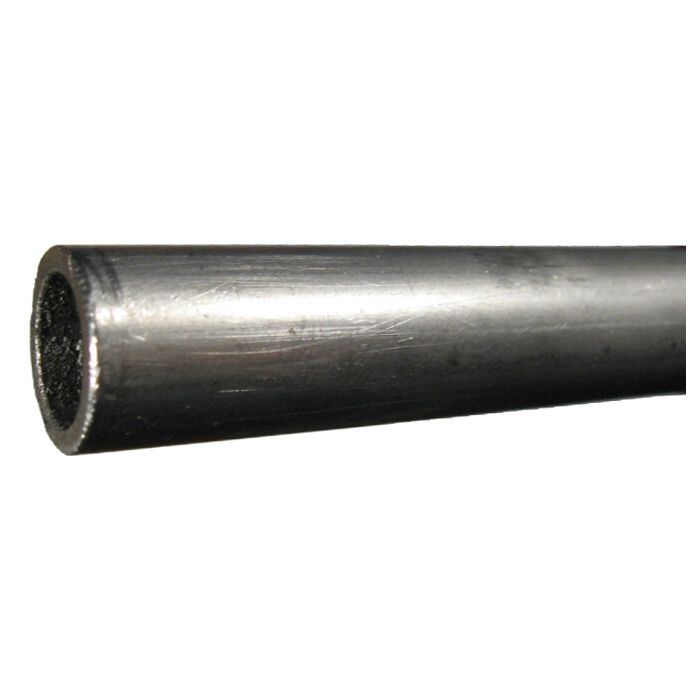

Seamless Carbon Steel Tubing, 0.38 Inch OD, 0.05 Inch Thick, 0.28 Inch ID

Ask A Question
Burst Pressure
14373
Brand
Marmon/Keystone
Brand
Marmon - Keystone
Pack Size
12.00
UOM
FT
I.D.
0.277 in
Inside Area
0.06
Maximum Working Pressure
2396
O.D.
0.375 in
Rated Flow
2.80
Safety Factor
6:1
Supplier Part Number
3/8.049
Wall Thickness
0.05
Alternate Part Numbers
Alternate Part Number C1BK88, Alternate Part Number MI-08754324, Alternate Part Number MINO-01965X80001
Product Weight
0.15 lbs
Product Questions & Answers 2

Product Questions & Answers

trying to match up tubing i’ve already got, is this one 3/8 OD with about a .049 wall?
Question by: Daryl R on Nov 28, 2025, 11:45 AM
The outside diameter is 0.375 inch and the wall thickness is 0.049 inch, which puts the inside diameter at 0.277 inch.
Answer by: Customer Support on Nov 29, 2025, 5:14 PM
got a brake line project, is this tube the kind that’ll bend and flare without fighting me too much?
Question by: Rick C on Dec 2, 2025, 12:17 PM
Being annealed low carbon steel to SAE J524, it’s made for bending and flaring work. The size on this one is 0.375 inch OD with about a 0.049 inch wall and a 0.277 inch ID, so you can match it up to the tooling and fittings meant for that tubing size.
Answer by: Customer Support on Dec 4, 2025, 8:15 AM

Similar Products

Model Number O.D. Wall Thickness I.D. Inside Area Rated Flow Maximum Working Pressure Burst Pressure Safety Factor Price Buy Now
1/2.049 0.5 in 0.049 0.402 in 0.1269 6 1797 10780 6:1
1/2.065 0.5 in 0.065 0.37 in 0.1075 4.9 2383 14300 6:1
1/4.049 0.25 in 0.049 0.152 in 0.0181 0.8 3593 21560 6:1
3/8.049 0.375 in 0.049 0.277 in 0.0602 2.8 2396 14373 6:1
3/8.065 0.375 in 0.065 0.245 in 0.0471 2.6 3178 19067 6:1
5/8.095 0.63 in 0.095 0.435 in 0.1485 6.9 2787 16720 6:1
1-1/4.095 1.25 in 0.095 1.06 in 0.882 41 1393 8360 6:1
1-1/4.120 1.25 in 0.12 1.01 in 0.8008 36.7 1760 10560 6:1
1.065 1 in 0.065 0.87 in 0.5942 28.1 1192 7150 6:1
1.120 1 in 0.12 0.76 in 0.4534 20.7 2200 13200 6:1
1/2.083 0.5 in 0.083 0.334 in 0.0876 4 3043 18260 6:1
3/16.035 0.1875 in 0.035 0.1175 in 0.0108 0.4 3422 20533 6:1
3/4.049 0.75 in 0.049 0.652 in 0.3337 15.4 1198 7187 6:1
3/4.065 0.75 in 0.065 0.62 in 0.3018 12 1589 9533 6:1
3/4.095 0.75 in 0.095 0.56 in 0.2462 11 2322 13933 6:1
3/4.109 0.75 in 0.109 0.532 in 0.2222 10.6 2664 15987 6:1
5/8.065 0.63 in 0.065 0.495 in 0.1923 9 1907 11440 6:1
