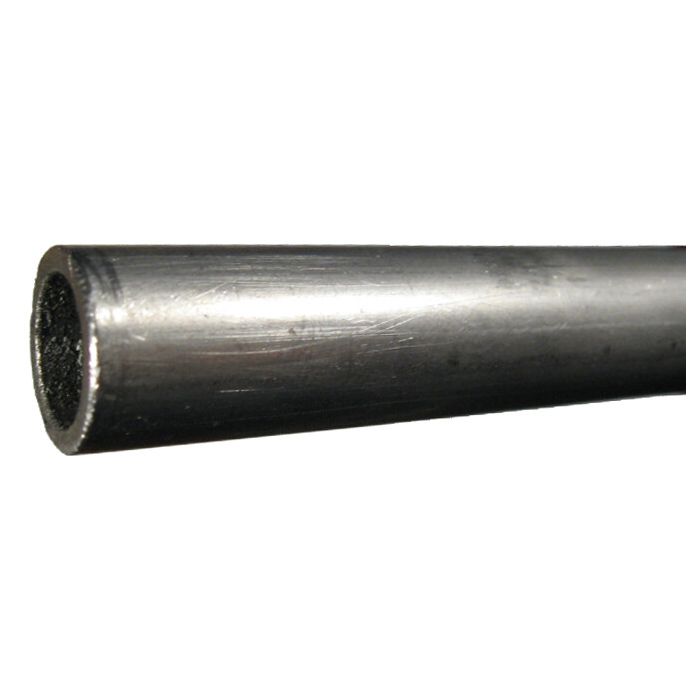

main product photo

Seamless Carbon Steel Tubing, 0.75 Inch OD, 0.11 Inch Thick, 0.53 Inch ID

Ask A Question
Burst Pressure
15987
Brand
Marmon/Keystone
Brand
Marmon - Keystone
Pack Size
12.00
UOM
FT
I.D.
0.532 in
Inside Area
0.22
Maximum Working Pressure
2664
O.D.
0.75 in
Rated Flow
10.60
Rated Flow
10.6
Safety Factor
6:1
Supplier Part Number
3/4.109
Wall Thickness
0.11
Alternate Part Numbers
Alternate Part Number C1BK58
Product Weight
0.32 lbs
Product Questions & Answers 3

Product Questions & Answers

working pressure on this tubing is listed at 2664 psi -- is that already accounting for some kind of safety buffer, or is that the absolute max before things go sideways?
Question by: Rod F on Jun 1, 2025, 2:39 PM
That 2664 psi rating already has a 6:1 safety factor built in, so it's a conservative working number rather than the edge of failure. The burst pressure on this tubing is actually rated at 15,987 psi. The 6:1 factor is the standard applied for conditions where hydraulic shock and mechanical strain are considered considerable. If your application runs smoother with minimal shock, a 4:1 factor could allow for higher working pressures, but if you're dealing with severe shock conditions regularly, stepping down to an 8:1 safety factor would be the right call.
Answer by: Customer Support on Jun 2, 2025, 6:20 PM
What's the highest pressure this tubing can handle without bursting?
Question by: Roy R on Jun 15, 2025, 9:54 PM
That tubing is rated to burst at 15987 PSI.
Answer by: Customer Support on Jun 17, 2025, 8:47 PM
got a tube bender set up for 3/4 line, is this the right size tubing or am i gonna be fighting it?
Question by: Frank P on Feb 28, 2026, 4:11 PM
With a 0.75 inch outside diameter and a 0.109 inch wall, this is the standard 3/4 inch OD seamless low carbon steel tubing (SAE J524) that’s annealed for bending and flaring, so it’s a good match for tooling sized by OD.
Answer by: Customer Support on Mar 2, 2026, 6:22 AM

Similar Products

Model Number O.D. Wall Thickness I.D. Inside Area Rated Flow Maximum Working Pressure Burst Pressure Safety Factor Price Buy Now
1/2.049 0.5 in 0.049 0.402 in 0.1269 6 1797 10780 6:1
1/2.065 0.5 in 0.065 0.37 in 0.1075 4.9 2383 14300 6:1
1/4.049 0.25 in 0.049 0.152 in 0.0181 0.8 3593 21560 6:1
3/8.049 0.375 in 0.049 0.277 in 0.0602 2.8 2396 14373 6:1
3/8.065 0.375 in 0.065 0.245 in 0.0471 2.6 3178 19067 6:1
5/8.095 0.63 in 0.095 0.435 in 0.1485 6.9 2787 16720 6:1
1-1/4.095 1.25 in 0.095 1.06 in 0.882 41 1393 8360 6:1
1-1/4.120 1.25 in 0.12 1.01 in 0.8008 36.7 1760 10560 6:1
1.065 1 in 0.065 0.87 in 0.5942 28.1 1192 7150 6:1
1.120 1 in 0.12 0.76 in 0.4534 20.7 2200 13200 6:1
1/2.083 0.5 in 0.083 0.334 in 0.0876 4 3043 18260 6:1
3/16.035 0.1875 in 0.035 0.1175 in 0.0108 0.4 3422 20533 6:1
3/4.049 0.75 in 0.049 0.652 in 0.3337 15.4 1198 7187 6:1
3/4.065 0.75 in 0.065 0.62 in 0.3018 12 1589 9533 6:1
3/4.095 0.75 in 0.095 0.56 in 0.2462 11 2322 13933 6:1
3/4.109 0.75 in 0.109 0.532 in 0.2222 10.6 2664 15987 6:1
5/8.065 0.63 in 0.065 0.495 in 0.1923 9 1907 11440 6:1
