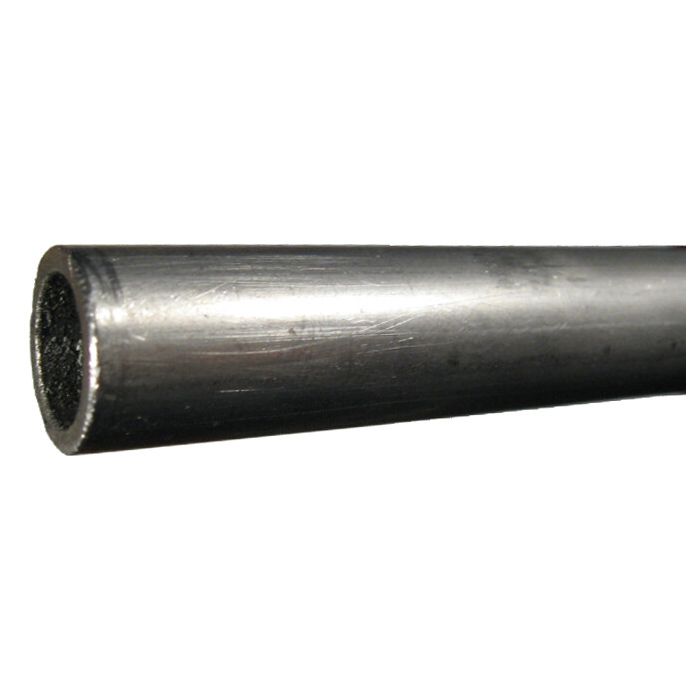

Seamless Carbon Steel Tubing, 0.19 Inch OD, 0.04 Inch Thick, 0.12 Inch ID

Burst Pressure 20533	Brand Marmon/Keystone	Brand Marmon - Keystone	Pack Size 12.00	UOM FT	I.D. 0.1175 in	Inside Area 0.01	Maximum Working Pressure 3422	O.D. 0.1875 in	Rated Flow 0.40	Safety Factor 6:1	Supplier Part Number 3/16.035	Wall Thickness 0.04	Alternate Part Numbers Alternate Part Number C1BK42	Product Weight 0.09 lbs

Product Questions & Answers 1

Product Questions & Answers

what's the working pressure on this tubing? got a line that sees some hydraulic shock and want to make sure i ain't undersizing it

Question by: Shawn B on Nov 6, 2025, 4:26 PM

At a 6:1 safety factor, the working pressure comes out to 3422 PSI. That safety factor is already built around applications with considerable hydraulic shock and mechanical strain, so it's the right number to use for your situation. If shock were severe enough to warrant an 8:1 factor, you'd be working with a lower allowable pressure than that. The burst pressure on this tubing is 20,533 PSI, but the 3422 PSI working pressure is what you'd size to under those conditions.

Answer by: Customer Support on Nov 8, 2025, 6:46 AM

Similar Products

Model Number	O.D.	Wall Thickness	I.D.	Inside Area	Rated Flow	Maximum Working Pressure	Burst Pressure	Safety Factor
1/2.049	0.5 in	0.049	0.402 in	0.1269	6	1797	10780	6:1
1/2.065	0.5 in	0.065	0.37 in	0.1075	4.9	2383	14300	6:1
1/4.049	0.25 in	0.049	0.152 in	0.0181	0.8	3593	21560	6:1
3/8.049	0.375 in	0.049	0.277 in	0.0602	2.8	2396	14373	6:1
3/8.065	0.375 in	0.065	0.245 in	0.0471	2.6	3178	19067	6:1
5/8.095	0.63 in	0.095	0.435 in	0.1485	6.9	2787	16720	6:1
1-1/4.095	1.25 in	0.095	1.06 in	0.882	41	1393	8360	6:1
1-1/4.120	1.25 in	0.12	1.01 in	0.8008	36.7	1760	10560	6:1
1.065	1 in	0.065	0.87 in	0.5942	28.1	1192	7150	6:1
1.120	1 in	0.12	0.76 in	0.4534	20.7	2200	13200	6:1
1/2.083	0.5 in	0.083	0.334 in	0.0876	4	3043	18260	6:1
3/16.035	0.1875 in	0.035	0.1175 in	0.0108	0.4	3422	20533	6:1
3/4.049	0.75 in	0.049	0.652 in	0.3337	15.4	1198	7187	6:1
3/4.065	0.75 in	0.065	0.62 in	0.3018	12	1589	9533	6:1
3/4.095	0.75 in	0.095	0.56 in	0.2462	11	2322	13933	6:1
3/4.109	0.75 in	0.109	0.532 in	0.2222	10.6	2664	15987	6:1
5/8.065	0.63 in	0.065	0.495 in	0.1923	9	1907	11440	6:1
