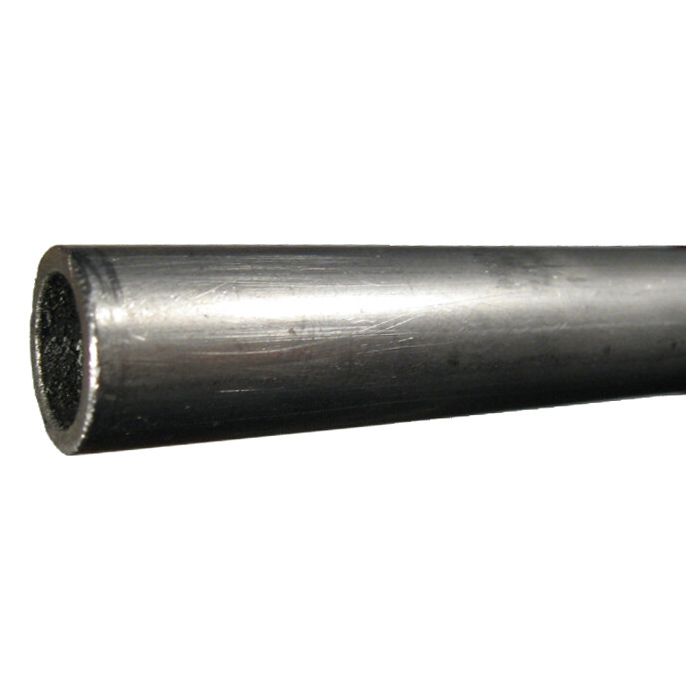

Seamless Carbon Steel Tubing, 0.50 Inch OD, 0.08 Inch Thick, 0.33 Inch ID

Burst Pressure 18260	Brand Marmon/Keystone	Brand Marmon - Keystone	Pack Size 12.00	UOM FT	I.D. 0.334 in	Inside Area 0.09	Maximum Working Pressure 3043	O.D. 0.5 in	Rated Flow 4	Safety Factor 6:1	Supplier Part Number 1/2.083	Wall Thickness 0.08	Alternate Part Numbers Alternate Part Number C1AE79	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

What's the highest pressure this tubing can handle before it busts?

Question by: Denise F on May 10, 2025, 4:58 PM

Burst pressure is rated to 18260 psi according to SAE J1065 standards.

Answer by: Customer Support on May 12, 2025, 7:09 AM

tubing says max working pressure is 3043 psi but also shows a burst pressure way higher than that, which number should I actually be sizing to for a hydraulic line?

Question by: Kent P on Jan 5, 2026, 6:44 AM

For sizing purposes, 3043 psi is your number. That maximum working pressure already accounts for the 6:1 safety factor built into the rating, which is calculated for conditions where hydraulic shock and mechanical strain are present at a considerable level. The 18,260 psi burst figure is a theoretical ceiling, not an operational target. Running at or below 3043 psi keeps you within the intended safety margin for real-world hydraulic use.

Answer by: Customer Support on Jan 6, 2026, 9:46 PM

Similar Products

Model Number	O.D.	Wall Thickness	I.D.	Inside Area	Rated Flow	Maximum Working Pressure	Burst Pressure	Safety Factor
1/2.049	0.5 in	0.049	0.402 in	0.1269	6	1797	10780	6:1
1/2.065	0.5 in	0.065	0.37 in	0.1075	4.9	2383	14300	6:1
1/4.049	0.25 in	0.049	0.152 in	0.0181	0.8	3593	21560	6:1
3/8.049	0.375 in	0.049	0.277 in	0.0602	2.8	2396	14373	6:1
3/8.065	0.375 in	0.065	0.245 in	0.0471	2.6	3178	19067	6:1
5/8.095	0.63 in	0.095	0.435 in	0.1485	6.9	2787	16720	6:1
1-1/4.095	1.25 in	0.095	1.06 in	0.882	41	1393	8360	6:1
1-1/4.120	1.25 in	0.12	1.01 in	0.8008	36.7	1760	10560	6:1
1.065	1 in	0.065	0.87 in	0.5942	28.1	1192	7150	6:1
1.120	1 in	0.12	0.76 in	0.4534	20.7	2200	13200	6:1
1/2.083	0.5 in	0.083	0.334 in	0.0876	4	3043	18260	6:1
3/16.035	0.1875 in	0.035	0.1175 in	0.0108	0.4	3422	20533	6:1
3/4.049	0.75 in	0.049	0.652 in	0.3337	15.4	1198	7187	6:1
3/4.065	0.75 in	0.065	0.62 in	0.3018	12	1589	9533	6:1
3/4.095	0.75 in	0.095	0.56 in	0.2462	11	2322	13933	6:1
3/4.109	0.75 in	0.109	0.532 in	0.2222	10.6	2664	15987	6:1
5/8.065	0.63 in	0.065	0.495 in	0.1923	9	1907	11440	6:1
