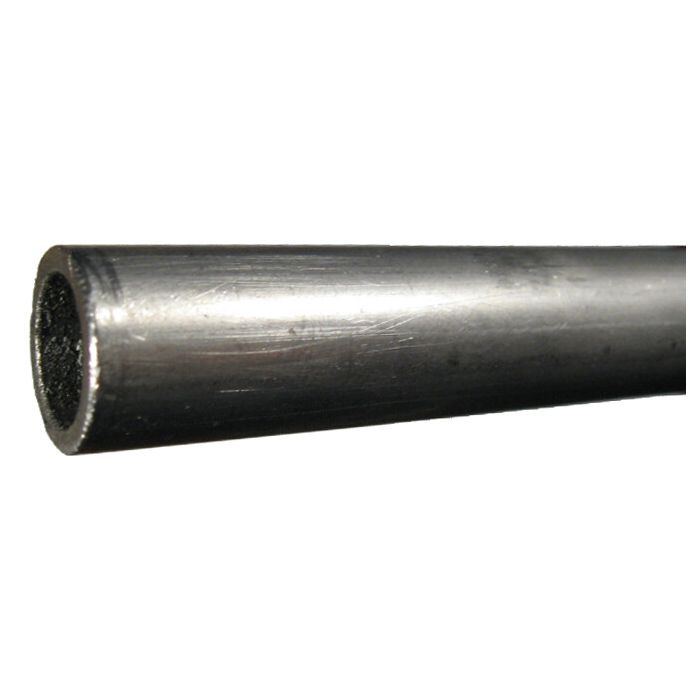

Seamless Carbon Steel Tubing, 1.25 Inch OD, 0.12 Inch Thick, 1.01 Inch ID

Burst Pressure
10560
Brand
Marmon/Keystone
Brand
Marmon - Keystone
Pack Size
12.00
UOM
FT
I.D.
1.01 in
Inside Area
0.80
Maximum Working Pressure
1760
O.D.
1.25 in
Rated Flow
36.70
Rated Flow
36.7
Safety Factor
6:1
Supplier Part Number
1-1/4.120
Wall Thickness
0.12
Alternate Part Numbers
Alternate Part Number C1AE34, Alternate Part Number MI-08763764, Alternate Part Number MINO-01965X80003
Product Weight
0.82 lbs

Product Questions & Answers

what's the max working pressure on this tubing? got a system running around 1,400 psi and want to make sure it'll hold up without issues
Question by: Brent G on Apr 28, 2025, 3:37 PM
At 1,760 psi maximum working pressure, that 1,400 psi system sits comfortably within range. Worth knowing that figure already accounts for a 6:1 safety factor, which is the standard applied for conditions where hydraulic shock and mechanical strain are considered considerable. If your setup runs into more severe shock loads, the rated working pressure would need to be pulled back further to reflect an 8:1 safety factor. For routine fluid transfer or air brake applications without heavy shock, you're in good shape at that operating pressure.
Answer by: Customer Support on Apr 30, 2025, 6:06 AM
got a line that needs 1-1/4 OD steel tube. is this one actually 1.25 OD with a 0.120 wall, or am i readin it wrong
Question by: Ray B on Sep 30, 2025, 9:09 PM
Dimensional-wise, it is 1.25 inch outside diameter with a 0.12 inch wall thickness, which puts the inside diameter at 1.01 inch.
Answer by: Customer Support on Oct 2, 2025, 7:16 AM

Similar Products

Model Number O.D. Wall Thickness I.D. Inside Area Rated Flow Maximum Working Pressure Burst Pressure Safety Factor Price Buy Now
1/2.049 0.5 in 0.049 0.402 in 0.1269 6 1797 10780 6:1
1/2.065 0.5 in 0.065 0.37 in 0.1075 4.9 2383 14300 6:1
1/4.049 0.25 in 0.049 0.152 in 0.0181 0.8 3593 21560 6:1
3/8.049 0.375 in 0.049 0.277 in 0.0602 2.8 2396 14373 6:1
3/8.065 0.375 in 0.065 0.245 in 0.0471 2.6 3178 19067 6:1
5/8.095 0.63 in 0.095 0.435 in 0.1485 6.9 2787 16720 6:1
1-1/4.095 1.25 in 0.095 1.06 in 0.882 41 1393 8360 6:1
1-1/4.120 1.25 in 0.12 1.01 in 0.8008 36.7 1760 10560 6:1
1.065 1 in 0.065 0.87 in 0.5942 28.1 1192 7150 6:1
1.120 1 in 0.12 0.76 in 0.4534 20.7 2200 13200 6:1
1/2.083 0.5 in 0.083 0.334 in 0.0876 4 3043 18260 6:1
3/16.035 0.1875 in 0.035 0.1175 in 0.0108 0.4 3422 20533 6:1
3/4.049 0.75 in 0.049 0.652 in 0.3337 15.4 1198 7187 6:1
3/4.065 0.75 in 0.065 0.62 in 0.3018 12 1589 9533 6:1
3/4.095 0.75 in 0.095 0.56 in 0.2462 11 2322 13933 6:1
3/4.109 0.75 in 0.109 0.532 in 0.2222 10.6 2664 15987 6:1
5/8.065 0.63 in 0.065 0.495 in 0.1923 9 1907 11440 6:1
