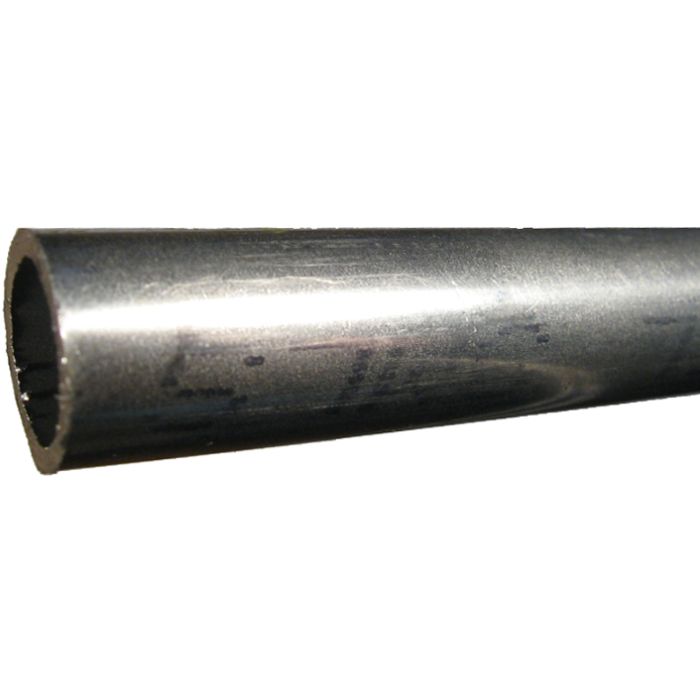

Seamless 316 Stainless Steel Tubing, Up To 4660 PSI

Application	Please review important safety & application information starting on
Note	A 6:1 safety factor is used in table below for applications where “considerable” hydraulic shock and mechanical strain are present. For applications where hydraulic shock and mechanical strain is not excessive, a 4:1 safety factor (higher working pressures) may be carefully considered. For applications where hydraulic shock and mechanical strain is severe a 8:1 safety factor (lower working pressures) should be applied. Tubing design pressures have not been de-rated for elevated operating temperatures. Contact us for application information regarding elevated temperatures. Tubing is stocked in 20 foot nominal lengths.
Pressure Rating	Based on using the more conservative Barlow formula where P=(2TxS)/O (P=burst pressure T=wall thickness S=tensile strength O=outside diameter).
Tubing Material Specifications	ASTM A269 B90 Seamless. Bright Annealed 316 Stainless Steel. Tensile strength 75,000 psi.
Warning	Refer to safety information regarding proper selection of tubing and tube fittings starting on

Products

Model Number	O.D.	Wall Thickness	I.D.	Inside Area	Rated Flow	Maximum Working Pressure	Burst Pressure	Safety Factor
1/4.035-SS	0.25 in	0.035	0.18 in	0.0254	0.9	3500	21000	6:1
1/2.049-SS	0.5 in	0.049	0.402 in	0.1269	6	2450	14700	6:1
1/4.049-SS	0.25 in	0.049	0.152 in	0.0181	0.7	4900	29400	6:1
3/4.065-SS	0.75 in	0.065	0.62 in	0.3018	12	2167	13000	6:1
3/8.049-SS	0.375 in	0.049	0.277 in	0.0602	2.8	3267	19600	6:1
5/8.065-SS	0.5625 in	0.065	0.4325 in	0.1923	9	2600	15600	6:1
1-1/4.120-SS	1.25 in	0.12	1.01 in	0.8008	36.7	2400	14400	6:1
1.109-SS	1 in	0.109	0.788 in	0.4801	22	2725	16350	6:1
1/2.065-SS	0.5 in	0.065	0.37 in	0.1075	4.9	3250	19500	6:1
3/16.035-SS	0.1875 in	0.035	0.1175 in	0.0108	0.4	4667	28000	6:1
3/4.095-SS	0.75 in	0.095	0.56 in	0.2462	11.1	3167	19000	6:1
3/8.035-SS	0.375 in	0.035	0.305 in	0.0731	3.4	2333	14000	6:1
