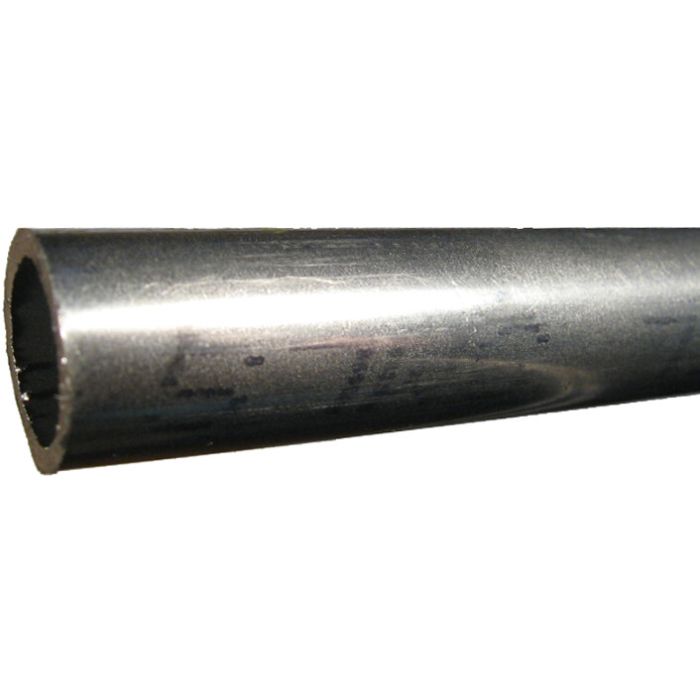

Seamless 316 Stainless Steel Tubing, 0.38 Inch OD, 0.05 Inch Thick, 0.28 Inch ID

Ask A Question
Burst Pressure
19600
Brand
Marmon/Keystone
Brand
Marmon - Keystone
Pack Size
12.00
UOM
FT
I.D.
0.277 in
Inside Area
0.06
Maximum Working Pressure
3267
O.D.
0.375 in
Rated Flow
2.80
Rated Flow
2.8
Safety Factor
6:1
Supplier Part Number
3/8.049-SS-BR
Wall Thickness
0.05
Alternate Part Numbers
Alternate Part Number 3/8.049-SS TUBING, Alternate Part Number 3/8.049-SS-BR, Alternate Part Number ASTM 316 SS TUBING A269 B90 SMLS 3267 PS, Alternate Part Number C1BK89, Alternate Part Number MI-08754325, Alternate Part Number MINO-01769X80072
Product Weight
0.34 lbs
Product Questions & Answers 3

Product Questions & Answers

got a tight spot to run line through. what are the actual tube sizes on this one?
Question by: Shawn W on Sep 6, 2025, 5:45 PM
For sizing, it is 0.375 inch outside diameter with a 0.049 inch wall, which puts the inside diameter at 0.277 inch.
Answer by: Customer Support on Sep 8, 2025, 6:29 AM
What’s the highest pressure this tubing can handle without, ya know, bustin'?
Question by: Ross G on Apr 6, 2025, 7:15 PM
Its burst pressure is rated at 19,600 psi, but the maximum working pressure you should plan for is 3,267 psi to maintain a safe margin.
Answer by: Customer Support on Apr 7, 2025, 8:51 PM
what's the working pressure rated at on this 3/8 stainless tubing? got a system running around 2800 psi and want to make sure it'll hold up
Question by: Hubert P on Sep 29, 2025, 9:58 AM
At a 6:1 safety factor, the maximum working pressure comes out to 3,267 psi, so a 2,800 psi system falls within that range. That 6:1 rating is the one to use when your application involves considerable hydraulic shock or mechanical strain. If shock and strain are more on the severe end, the manufacturer recommends stepping up to an 8:1 safety factor, which would put your working pressure lower than the 3,267 psi figure. Worth factoring that in depending on what your system actually sees day to day.
Answer by: Customer Support on Sep 30, 2025, 4:24 PM

Similar Products

Model Number O.D. Wall Thickness I.D. Inside Area Rated Flow Maximum Working Pressure Burst Pressure Safety Factor Price Buy Now
1/4.035-SS 0.25 in 0.035 0.18 in 0.0254 0.9 3500 21000 6:1
1/2.049-SS 0.5 in 0.049 0.402 in 0.1269 6 2450 14700 6:1
1/4.049-SS 0.25 in 0.049 0.152 in 0.0181 0.7 4900 29400 6:1
3/4.065-SS 0.75 in 0.065 0.62 in 0.3018 12 2167 13000 6:1
3/8.049-SS 0.375 in 0.049 0.277 in 0.0602 2.8 3267 19600 6:1
5/8.065-SS 0.5625 in 0.065 0.4325 in 0.1923 9 2600 15600 6:1
1-1/4.120-SS 1.25 in 0.12 1.01 in 0.8008 36.7 2400 14400 6:1
1.109-SS 1 in 0.109 0.788 in 0.4801 22 2725 16350 6:1
1/2.065-SS 0.5 in 0.065 0.37 in 0.1075 4.9 3250 19500 6:1
3/16.035-SS 0.1875 in 0.035 0.1175 in 0.0108 0.4 4667 28000 6:1
3/4.095-SS 0.75 in 0.095 0.56 in 0.2462 11.1 3167 19000 6:1
3/8.035-SS 0.375 in 0.035 0.305 in 0.0731 3.4 2333 14000 6:1
