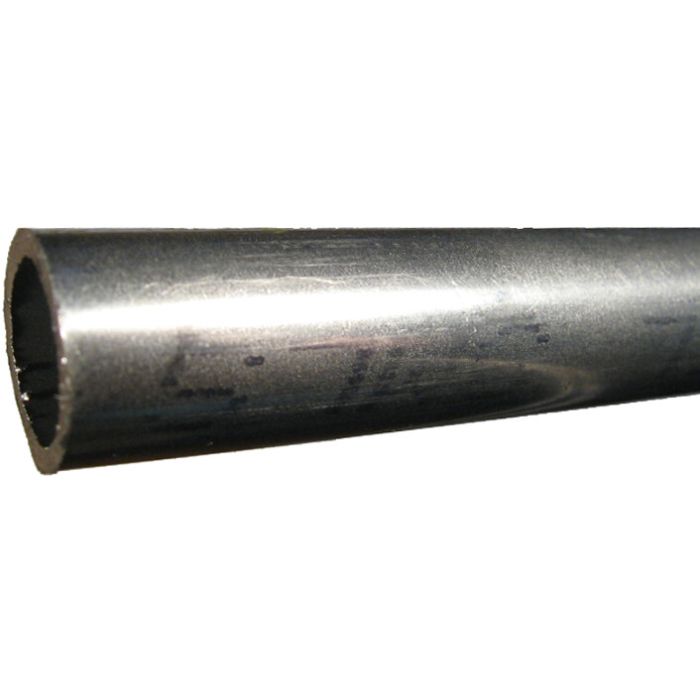

Seamless 316 Stainless Steel Tubing, 0.75 Inch OD, 0.10 Inch Thick, 0.56 Inch ID

Burst Pressure 19000	Brand Marmon/Keystone	Brand Marmon - Keystone	Pack Size 12.00	UOM FT	I.D. 0.56 in	Inside Area 0.25	Maximum Working Pressure 3167	O.D. 0.75 in	Rated Flow 11.10	Rated Flow 11.1	Safety Factor 6:1	Supplier Part Number 3/4.095-SS	Wall Thickness 0.10	Alternate Part Numbers Alternate Part Number C1BK57	Product Weight 0.76 lbs

Product Questions & Answers 1

Product Questions & Answers

got a job that calls for 3/4 stainless tube, is this one actually 0.75 OD and what’s the inside size?

Question by: Bobby P on Dec 14, 2025, 6:25 AM

Dimension-wise it is 0.75 inch outside diameter with a 0.56 inch inside diameter. The wall thickness is listed as 0.095 inch, which is essentially 0.10 inch nominal.

Answer by: Customer Support on Dec 16, 2025, 7:44 AM

Similar Products

Model Number	O.D.	Wall Thickness	I.D.	Inside Area	Rated Flow	Maximum Working Pressure	Burst Pressure	Safety Factor
1/4.035-SS	0.25 in	0.035	0.18 in	0.0254	0.9	3500	21000	6:1
1/2.049-SS	0.5 in	0.049	0.402 in	0.1269	6	2450	14700	6:1
1/4.049-SS	0.25 in	0.049	0.152 in	0.0181	0.7	4900	29400	6:1
3/4.065-SS	0.75 in	0.065	0.62 in	0.3018	12	2167	13000	6:1
3/8.049-SS	0.375 in	0.049	0.277 in	0.0602	2.8	3267	19600	6:1
5/8.065-SS	0.5625 in	0.065	0.4325 in	0.1923	9	2600	15600	6:1
1-1/4.120-SS	1.25 in	0.12	1.01 in	0.8008	36.7	2400	14400	6:1
1.109-SS	1 in	0.109	0.788 in	0.4801	22	2725	16350	6:1
1/2.065-SS	0.5 in	0.065	0.37 in	0.1075	4.9	3250	19500	6:1
3/16.035-SS	0.1875 in	0.035	0.1175 in	0.0108	0.4	4667	28000	6:1
3/4.095-SS	0.75 in	0.095	0.56 in	0.2462	11.1	3167	19000	6:1
3/8.035-SS	0.375 in	0.035	0.305 in	0.0731	3.4	2333	14000	6:1
