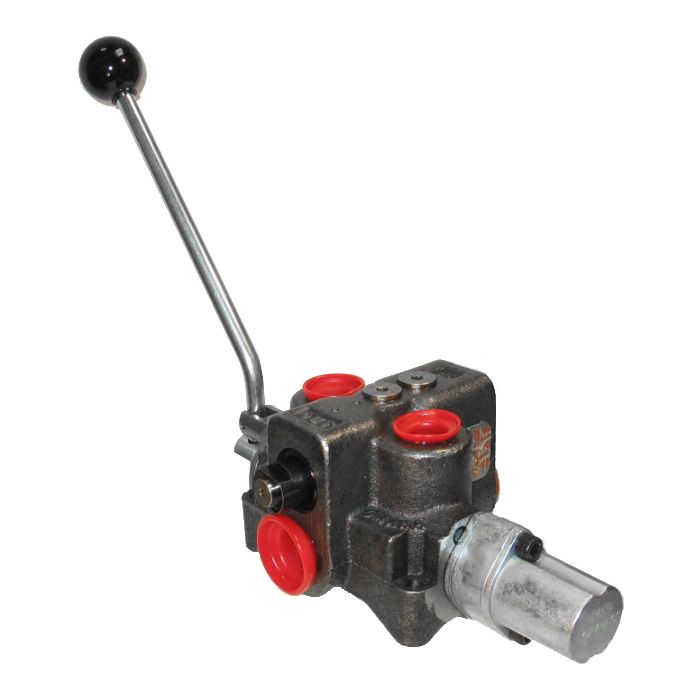

SDCF Series 1-Spool Monoblock Valves With Pressure Comp. Flow Control, Up To 3000 PSI & 18 GPM

Application	SDCF valves combine the features of a 4-way directional control valve, a full range pressure compensated by-pass type flow control valve and a pilot operated pressure relief valve all in one compact package. Flow to the work port is directly proportional to the movement of the lever. Flow out of each work port is constant regardless of load changes. The tank port must be plumbed directly back to tank.
Features	Full range pressure compensated bypass type flow control valve is built in. Pilot operated relief valve is standard. Fine positive metering in either direction. Precision ground chrome plated spool for long life.
Flow Rating	18 GPM.
Materials	Cast iron body. Buna-N O-Rings. Chrome plated steel spool.
Maximum Operating Pressure	3000 PSI.
Recommended Filtration	30 Micron.

Products

Model Number	Key	Type	Spool Action	Circuit Type	Flow Range	Ports	Features	Price	Buy Now
SDCF755M124LF1		4-way 3-position	Friction Detent	Open Center	0-12	3/4NPT Inlet & Outlet 1/2NPT Work Ports	Adjustable Relief
SDCF755TM12SLF1	A	4-way 3-position	Friction Detent	Tandem Center	0-12	3/4NPT Inlet & Outlet 1/2NPT Work Ports	Stainless Spool, Adjustable Relief
