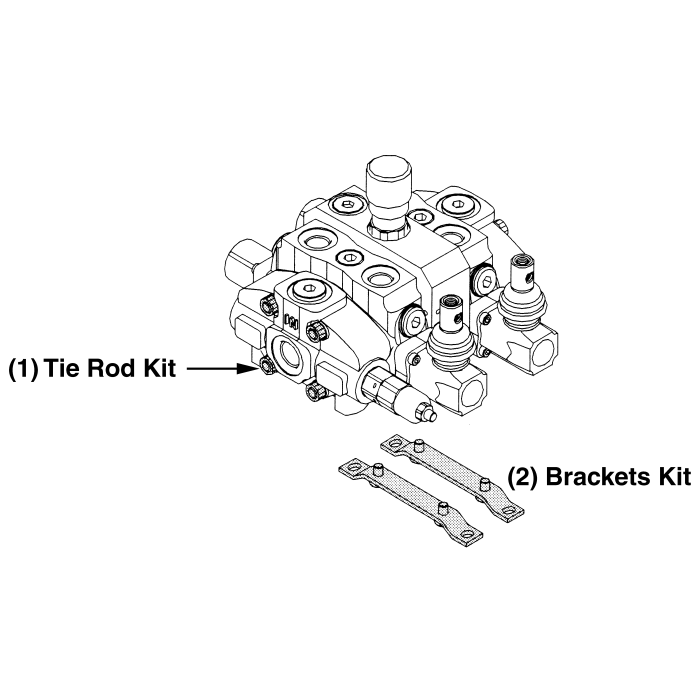

Sectional/Monoblock Directional Valve WALVOIL SD8/3 TIE ROD KIT

Brand Walvoil Fluid Power Corp.	Brand Walvoil Fluid Power	Pack Size 1.00	UOM EA	Key (1)	Supplier Part Number 5TIR108210	Alternate Part Numbers Alternate Part Number C1HU21	Product Weight 0.82 lbs

Product Questions & Answers 4

Product Questions & Answers

What’s the max pressure this tie rod kit can handle? Just want to make sure it'll work for my system.

Question by: Floyd J on Sep 4, 2025, 11:11 AM

This Walvoil SD8 series tie rod kit is rated for a maximum operating pressure of 4600 PSI.

Answer by: Customer Support on Sep 6, 2025, 8:07 AM

i keep seein “tie rod kit” on this one. what all is it meant to do on an SD8 valve?

Question by: Gary R on Mar 5, 2026, 10:14 AM

Think of it as the hardware that holds an SD8 sectional valve stack together. The SD8 series is a sectional valve that can be built up from 1 to 12 sections, and a tie rod kit is used to clamp and keep that stack aligned as an assembly.

Answer by: Customer Support on Mar 7, 2026, 7:24 AM

Will this kit work with any of the SD8 series valves?

Question by: Cindy W on Jun 11, 2025, 6:58 PM

This tie rod kit is specifically designed for the Walvoil SD8/3 sectional/monoblock directional valve.

Answer by: Customer Support on Jun 13, 2025, 3:28 PM

what's the max pressure this valve can handle before it starts giving you trouble?

Question by: Melvin B on Feb 4, 2026, 10:42 AM

Rated up to 4600 PSI maximum operating pressure, so it holds up well in demanding hydraulic setups. Keep in mind the outlet port T has a separate back pressure limit of 360 PSI, so that side of the circuit needs attention too when you're sizing things out.

Answer by: Customer Support on Feb 6, 2026, 6:57 AM

Similar Products

Model Number	Key	Product Description
5TIR108169	(1)	WALVOIL TIE ROD KIT FOR A 2-SECTION SD8
5TIR108210	(1)	WALVOIL SD8/3 TIE ROD KIT
5TIR108251	(1)	WALVOIL TIE ROD KIT. FOR WALVOIL SD8-SER
5STA125190	(2)	WALVOIL SD8/SDS150 BRACKET KIT
5TIR108128	(1)	WALVOIL SD8/1 TIE ROD KIT
5TIR108292	(1)	Tie rod kit for a 5-section valve assembly
