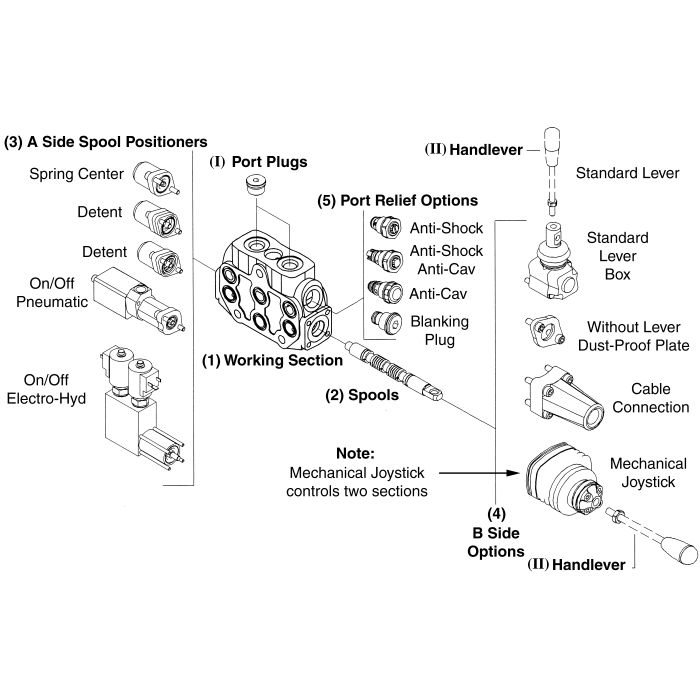

Sectional/Monoblock Directional Valve WALVOIL HANDLEVER (TYPE AL01/M10X150) FO

Brand Walvoil Fluid Power Corp.	Brand Walvoil Fluid Power	Pack Size 1.00	UOM EA	Key (II)	Supplier Part Number 170012015	Alternate Part Numbers Alternate Part Number C1HN55	Product Weight 0.23 lbs

Product Questions & Answers 3

Product Questions & Answers

got a SD6 valve and the handlever on it is bent, is this the AL01 with M10 x 1.50 threads?

Question by: Phil J on May 7, 2025, 7:23 PM

This part is labeled as a Walvoil SD6 Series handle lever, type AL01 with an M10 x 1.50 thread. If your SD6 setup uses that AL01/M10x150 lever style, it matches the spec called out here.

Answer by: Customer Support on May 9, 2025, 1:30 PM

got a setup running a series circuit and just need to make sure about the max pressure rating before I put it on. what can this valve handle?

Question by: Roy S on Nov 12, 2025, 7:49 PM

Depending on your circuit layout, the maximum operating pressure shifts. Series circuits max out at 3,050 PSI, while parallel or tandem configurations can safely handle up to 4,600 PSI.

Answer by: Customer Support on Nov 14, 2025, 5:49 PM

what's the max pressure this valve can handle runnin a parallel circuit setup

Question by: Patty J on Jan 15, 2026, 6:32 AM

For parallel or tandem circuits, the SD6 Series tops out at 4600 PSI operating pressure. If you're running a series circuit instead, that limit drops to 3050 PSI. Worth knowing going in so you're not pushing it past its rated range.

Answer by: Customer Support on Jan 17, 2026, 6:36 AM
