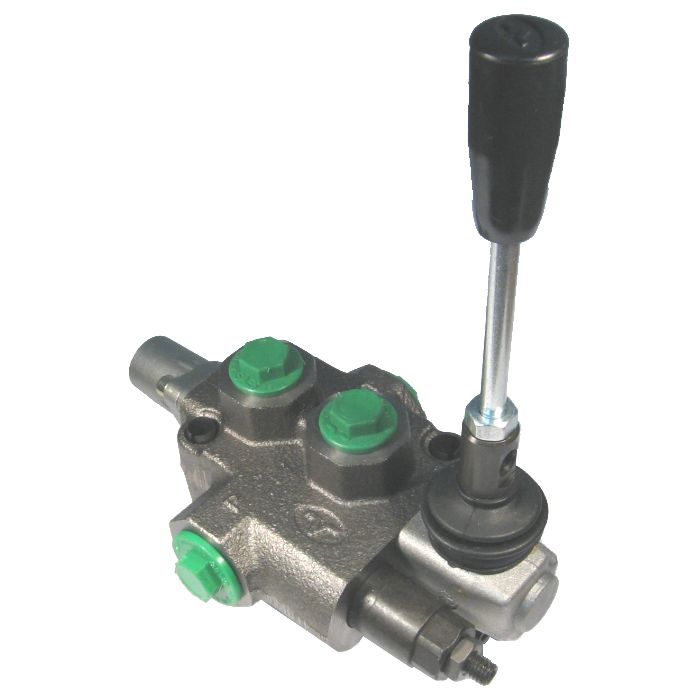

SD4 Series Monoblock Valves, Up To 3600 PSI & 12 GPM
Ambient Temperature Range |
-40°F to 140°F. |
Features |
Simple, compact design, one-spool valve for open and closed center hydraulic systems • Main pressure relief valve • Optional rotary and detent kick-out controls • Optional cable control • Interchangeable spools. |
Flow Rating |
12 GPM. |
Fluid Viscosity |
80 to 400 SSU Operating, 70 SSU Minimum, 1950 SSU Maximum. |
Internal Leakage |
0.18 in³/min at 1450 PSI differential pressure. |
Maximum Back Pressure |
360 PSI on outlet port T. |
Maximum Operating Pressure |
3600 PSI. |
Note |
Performance data measured with mineral oil of 215 SSU viscosity at 104°F. |
Recommended Filtration |
ISO 4406 19/16. |
Temperature Range |
-4°F to 176°F with standard Buna-N seals. |
Products
| Model Number | Key | Product Description | Price | Buy Now |
|---|---|---|---|---|
| FVL5LEV105000 | (5) | WALVOIL 5LEV105000 SD4 LEVER BOX. |
|
|
| FVL5V11104000 | (4) | WALVOIL 5V11104000 SD4 DETENT KIT. |
|
