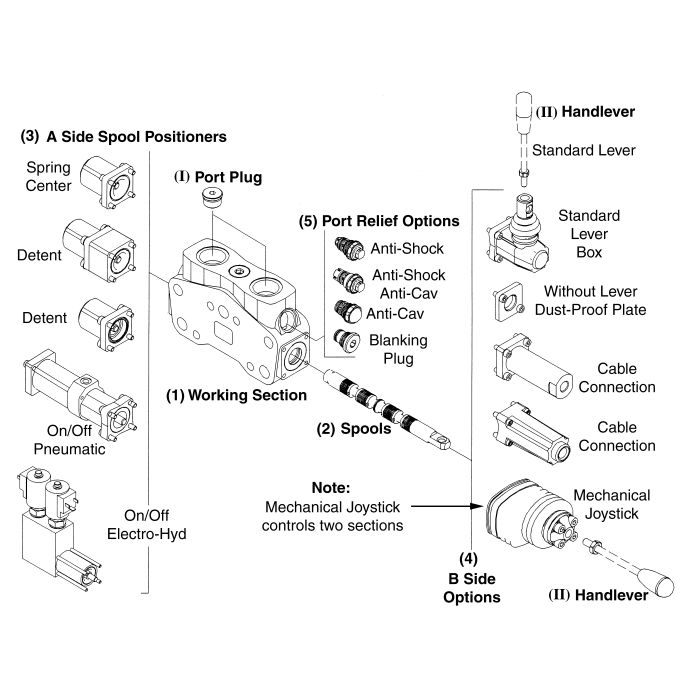

SD25 Series Walvoil SD25 8IM-SAE REMOTE Hydraulic KI

Brand Walvoil Fluid Power Corp.	Brand Walvoil Fluid Power	Pack Size 1.00	UOM EA	Key (3)	Supplier Part Number 5IDR225700	Alternate Part Numbers Alternate Part Number C1HT46	Product Weight 2.61 lbs

Product Questions & Answers 1

Product Questions & Answers

what's the max pressure this valve'll handle on a parallel circuit setup?

Question by: Steve R on Sep 23, 2025, 2:19 PM

Running parallel circuit, the SD25 is rated up to 4600 PSI. If you're on a series circuit instead, that number drops to 3050 PSI. Worth knowing before you size it into your system, because those are two pretty different limits depending on how your hydraulics are laid out.

Answer by: Customer Support on Sep 24, 2025, 4:12 PM
